High-speed automatic stick-pack packaging for powder, granule and liquid & paste. 2-16 lanes, up to 50 bags per lane per minute. Food-grade 304 stainless steel, GMP compliant.
Call: +86 13939063851 | Email: contact@foodlinemachine.com
Three dedicated configurations for powder, granule and liquid & paste — each available in 3 frame sizes (300/600/900) to match your output.

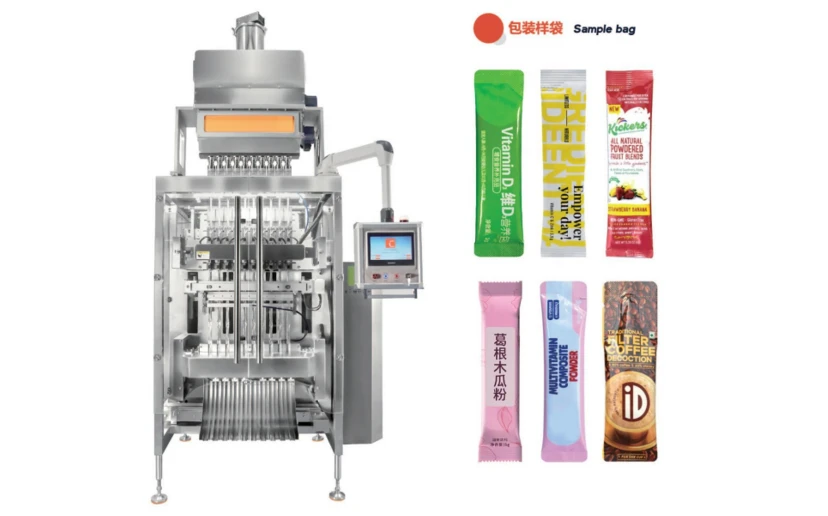

Models: 300BF / 600BF / 900BF
Specifically designed for fine powder products with auger screw filling. Equipped with dust collection interface and screw feeder to ensure accurate dosing and a clean working environment.
| Parameter | 300BF | 600BF | 900BF |
|---|---|---|---|
| Lanes | 2-4 Lanes | 3-10 Lanes | 4-16 Lanes |
| Bag Width | 17-70mm | 17-95mm | 17-105mm |
| Max Film Width | 300mm | 600mm | 900mm |
| Sealing Type | Back Seal (Stick Pack) | ||
| Packing Speed | 30-50 Bags/Lane/Min | ||
| Filling Range | 1-50g (customizable up to 100g) | ||
| Measuring Method | Long Screw / Short Screw / Short Screw + Cup | ||
| Cutting Type | Straight / Zigzag / Round / Die-cut | ||
| Bag Length | 50-180mm | ||
| Power Supply | 220V/50Hz, 3.5kw | 220V/50Hz, 5.5kw | 220V/50Hz, 7.5kw |
| Dimension (L×W×H) | 1900×1440×3130mm | 1860×1750×3300mm | 1860×2050×3375mm |
| Weight | ~900kg | ~1100kg | ~1400kg |
* Parameters are reference values. Exact specifications subject to final configuration based on your material and bag design.

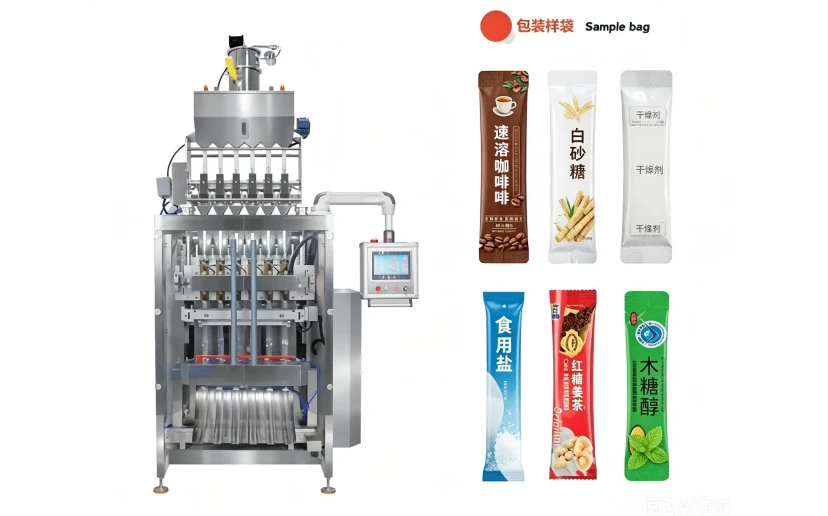

Models: 300BK / 600BK / 900BK
The most popular configuration for free-flowing granular products. Volumetric cup or electronic weigher filling ensures high-speed, accurate dosing for sugar, salt, coffee and more.
| Parameter | 300BK | 600BK | 900BK |
|---|---|---|---|
| Lanes | 2-4 Lanes | 3-10 Lanes | 4-16 Lanes |
| Bag Width | 17-70mm | 17-95mm | 17-105mm |
| Max Film Width | 300mm | 600mm | 900mm |
| Sealing Type | Back Seal (Stick Pack) | ||
| Packing Speed | 30-50 Bags/Lane/Min | ||
| Filling Range | 1-50g (customizable up to 100g) | ||
| Measuring Method | Volumetric Cup / Electronic Weigher | ||
| Cutting Type | Straight / Zigzag / Round / Die-cut | ||
| Bag Length | 50-180mm | ||
| Power Supply | 220V/50Hz, 3.5kw | 220V/50Hz, 5.5kw | 220V/50Hz, 7.5kw |
| Dimension (L×W×H) | 1900×1440×3130mm | 1860×1750×3300mm | 1860×2050×3375mm |
| Weight | ~900kg | ~1100kg | ~1400kg |
* Verified factory specifications. Electronic weigher option recommended for high-value or irregular granules.

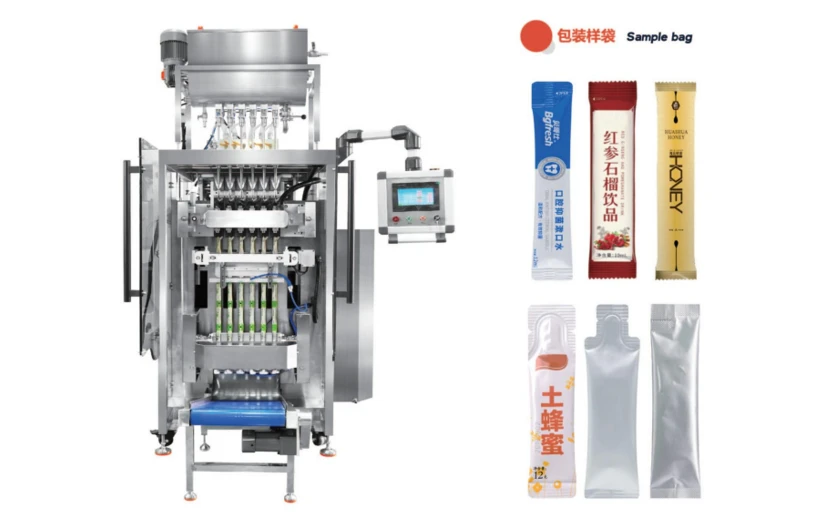

Models: 300BY / 600BY / 900BY
Engineered for liquid and paste products with four pump options to match viscosity. Piston pump for thick pastes, peristaltic pump for corrosive liquids, ceramic pump for high-precision pharmaceuticals.
| Parameter | 300BY | 600BY | 900BY |
|---|---|---|---|
| Lanes | 2-4 Lanes | 3-10 Lanes | 4-16 Lanes |
| Bag Width | 17-70mm | 17-95mm | 17-105mm |
| Max Film Width | 300mm | 600mm | 900mm |
| Sealing Type | Back Seal (Stick Pack) | ||
| Packing Speed | 25-40 Bags/Lane/Min | ||
| Filling Range | 1-50ml (customizable up to 100ml) | ||
| Measuring Method | Piston Pump / Peristaltic Pump / Ceramic Pump / Rotary Pump | ||
| Cutting Type | Straight / Zigzag / Round / Die-cut | ||
| Bag Length | 50-180mm | ||
| Power Supply | 220V/50Hz, 3.5kw | 220V/50Hz, 5.5kw | 220V/50Hz, 7.5kw |
| Dimension (L×W×H) | 1900×1440×2800mm | 1860×1750×2800mm | 1860×2050×2860mm |
| Weight | ~1000kg | ~1200kg | ~1400kg |
* Pump type selected based on material viscosity and corrosiveness. Please provide material sample for pump recommendation.
Every component is selected for durability, precision and ease of maintenance — so your line keeps running.
Full machine body constructed from food-grade 304 stainless steel. Complies with GMP production standards, easy to clean and corrosion-resistant.
Real-time film deviation correction ensures stable bag forming, reduces waste rate and keeps every bag consistent in shape and seal quality.
High-precision servo motor controls film feeding with ±0.1mm accuracy. Bag sealing is more stable and finished bags look more uniform.
Intuitive touch screen operation with default Chinese-English bilingual interface. Additional languages can be configured to match your operators.
Intelligent film-break recognition system triggers automatic alarm and machine shutdown. Roll film alignment and docking device minimizes downtime.
All electrical components are internationally recognized brands. PLC control system delivers high intelligence, fast operation and reliable performance.
Watch the multi-lane back seal packing machine run at full speed — from film loading to finished stick packs.
Powder Filling & Sealing
High-Speed Granule Packing
Liquid & Paste Filling
* Video placeholders — replace with your actual machine operation videos for maximum conversion impact.
Trusted by manufacturers across food, cosmetic and chemical industries worldwide.
Sugar, coffee, creamer, honey, sauce, jelly, juice sticks
Shampoo sachets, hair mask, skin cream, mouthwash, gel
Salt, pepper, spice mix, seasoning powder, bouillon granules
From roll film to finished stick packs — fully automated with minimal operator intervention.
Roll film mounted, auto feeding
Film formed into back-seal tubes
Screw/cup/pump accurate dosing
Heat seal top of each bag
Straight/zigzag/round/die-cut
Finished bags conveyed out
Tailor the machine to your exact product, bag design and production environment.
Powder: Long screw / Short screw / Short screw + cup
Granule: Volumetric cup / Electronic weigher
Liquid: Piston / Peristaltic / Ceramic / Rotary pump
Straight cut, zigzag cut, round corner cut, and custom die-cut shapes. Continuous connected bags available for secondary packaging.
Integrate laser coder, thermal transfer coder or ribbon coder for date, batch number and barcode printing directly on bags.
Screw feeder for powder, vacuum feeder for dust-free operation, diaphragm pump feeder for liquid and paste products.
Touch screen supports Chinese, English, Spanish, Russian, Arabic and more. Voltage configurable to 110V/220V/380V, 50/60Hz.
Connect to automatic counting machine, checkweigher and cartoning machine for a complete stick-pack-to-box production line.
A premier manufacturer of industrial automated packaging machinery with years of engineering expertise.
We design, manufacture and test every machine in-house. You get factory-direct pricing and direct access to our engineering team.
Send us your product sample — we'll run it on the actual machine and send you a video of the test results before you commit.
Comprehensive 12-month warranty covering all parts. Lifetime technical support via WhatsApp, email and remote desktop access.
Export to 60+ countries. We handle shipping, customs documentation, and offer on-site installation and operator training worldwide.
We are a premier manufacturer of industrial automated packaging machinery. With years of engineering expertise, we focus on providing high-efficiency flow wrappers, vertical form-fill-seal machines, and fully automated packaging lines.
Our machines are built strictly integrating top-tier electrical components to ensure high sensitivity tracking, durability, and operational ease. Our mission is to help global manufacturers maximize production output while minimizing downtime and labor costs.
