Industrial-grade yeast donut manufacturing solution with press-cutting technology, automatic proofing, continuous frying and optional chocolate enrobing. Engineered for 24/7 production with consistent quality.
1000-3000 pieces/hour high output capacity
30-100mm customizable donut sizes
PLC touch screen control system
Food-grade 304 stainless steel construction

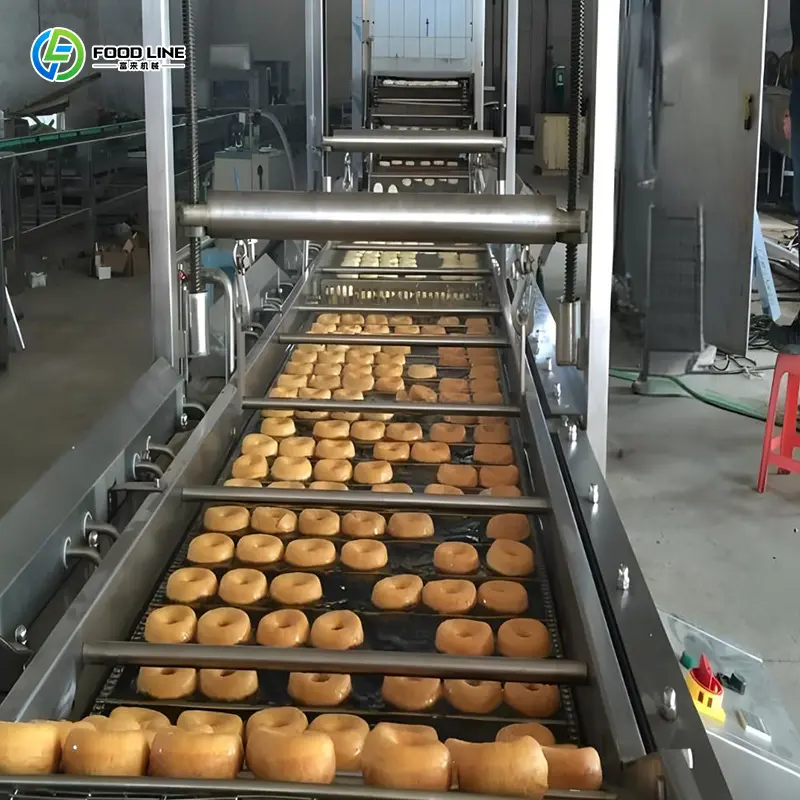

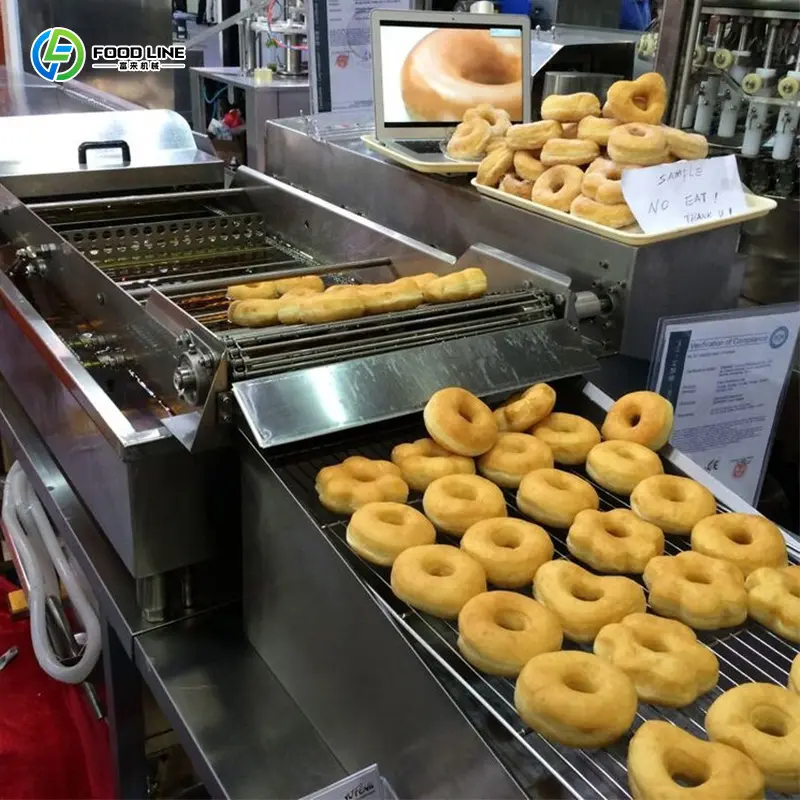

Watch our fully automatic donut production line running at full capacity — from dough mixing to finished chocolate-coated donuts
Precision-engineered for commercial bakeries and food factories seeking reliable, high-volume donut production
Multiple mold sizes produce donuts 30-100mm diameter with fully adjustable thickness. Quick tool change for different shapes.
Heavy-duty food-grade 304 stainless steel construction. Hygienic design, easy disassembly, 5-10 year service life.
Low energy consumption, high yield. Significantly reduces material waste and minimizes manual labor requirements.
Advanced automatic temperature control maintains uniform oil heat. Consistent golden color and perfect texture every batch.
Complete end-to-end solution — each unit synchronized for seamless production flow

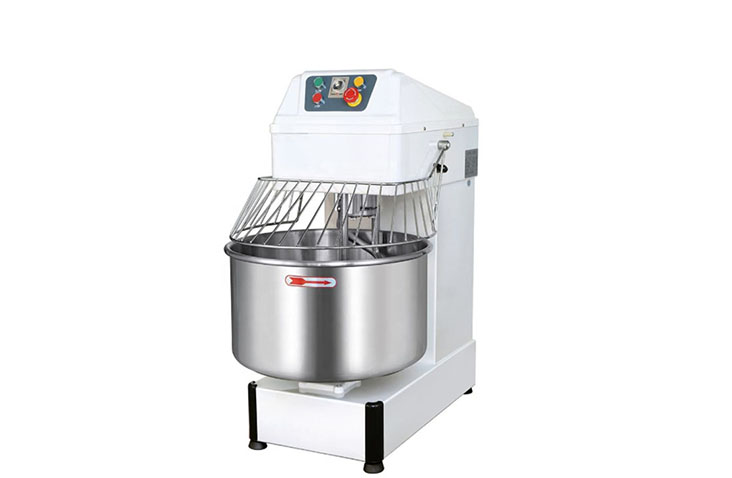

Heavy-duty spiral mixer for optimal gluten development
Power3/4.5 kW
Capacity50kg/h powder
Voltage380V / 50Hz

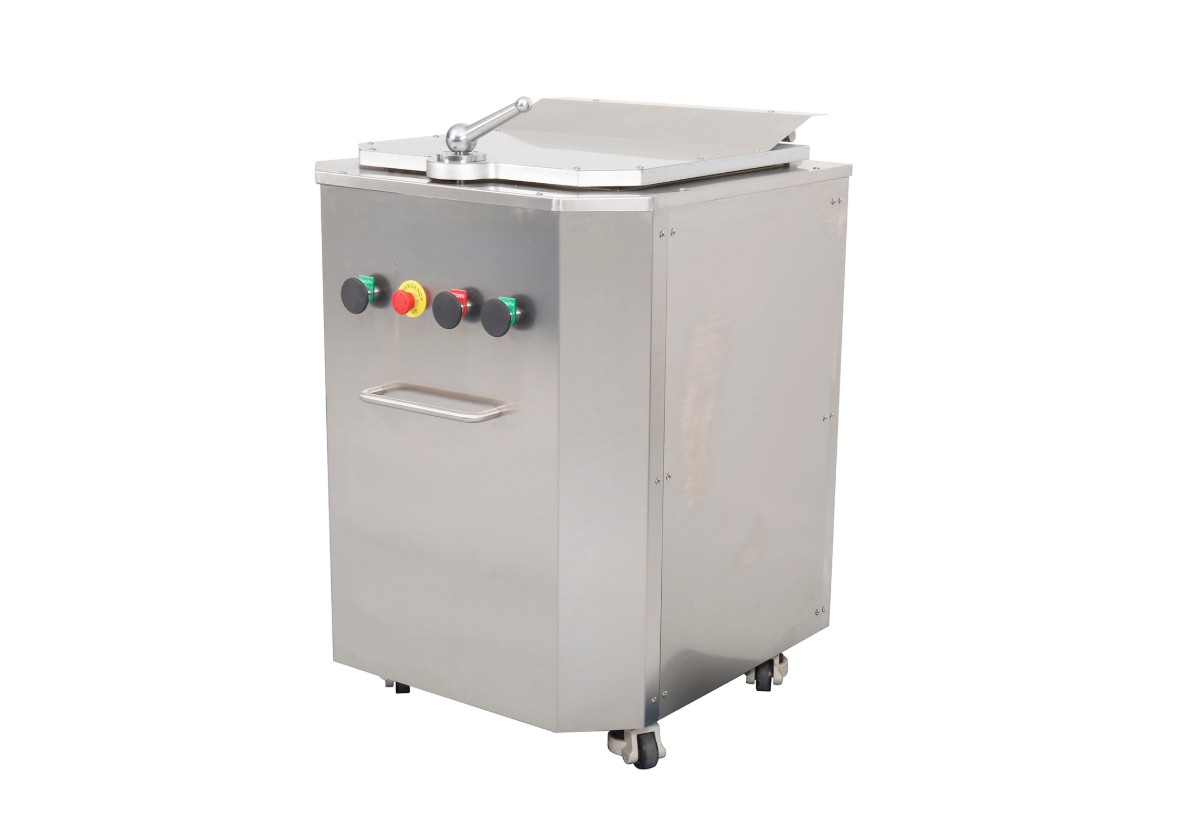

Precision hydraulic dividing for consistent portion weight
Power1.5 kW
Weight Range100-800g
Output20 pcs/time

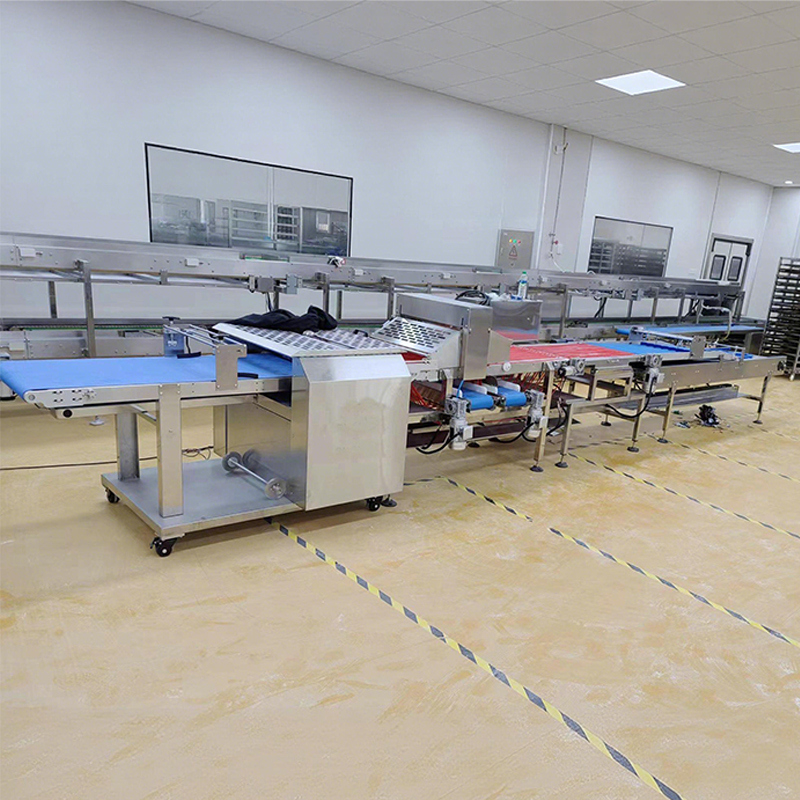

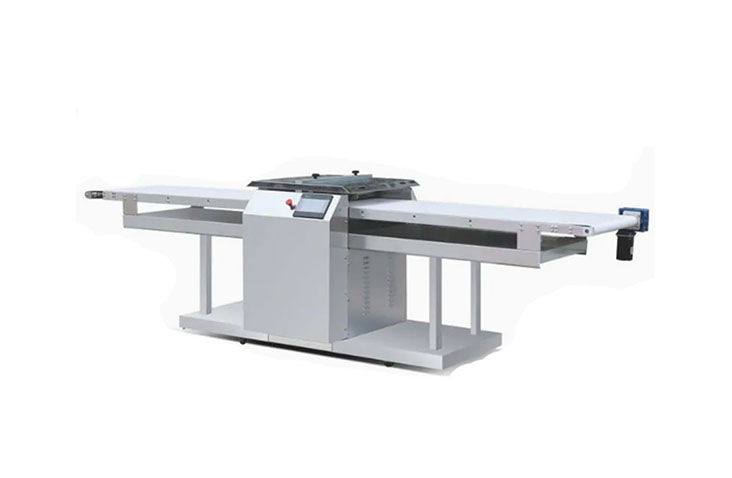

Continuous sheeting + automatic press-cut forming
Belt Width640 mm
Thickness1-60 mm
Speed100-500mm/s

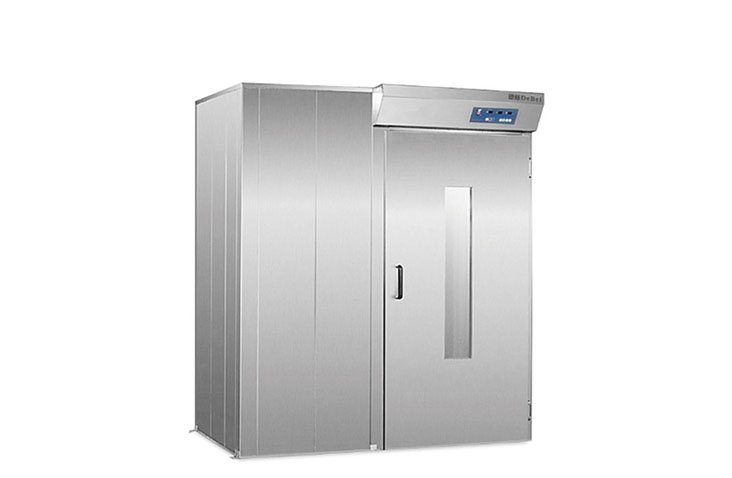

Temperature & humidity controlled continuous proofing
Power47 kW
Temp Range35-40°C
Humidity60-85%

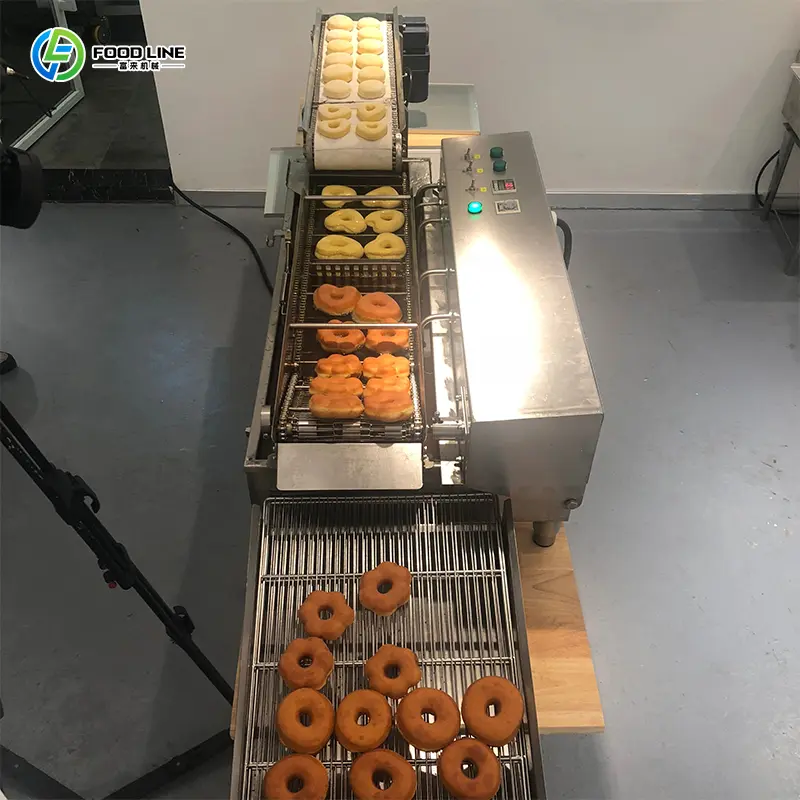

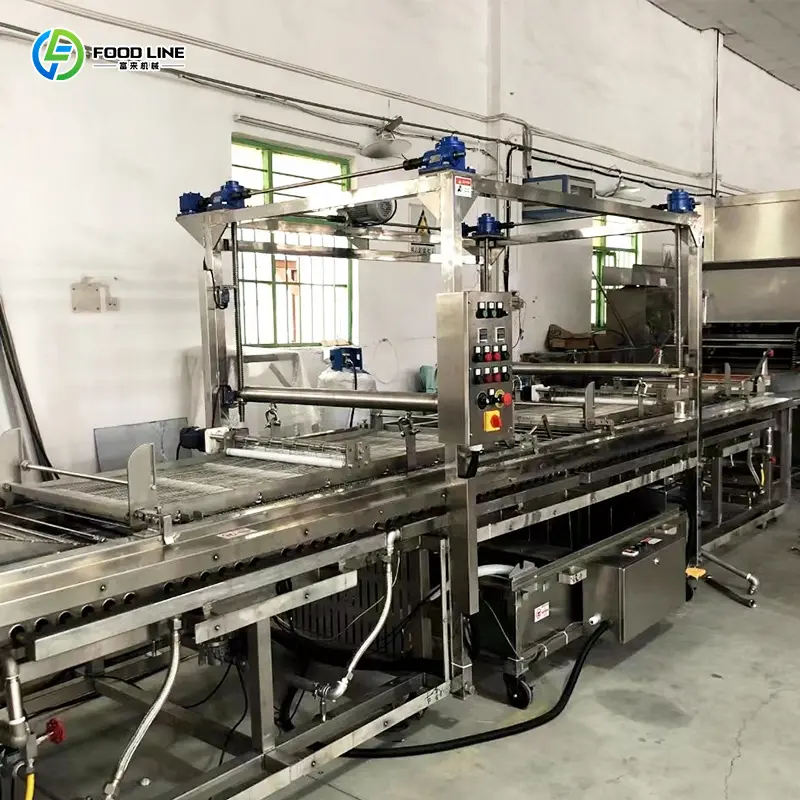

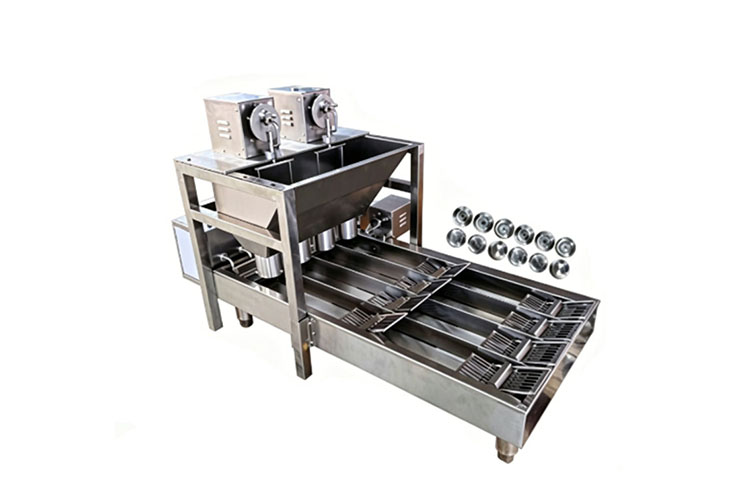

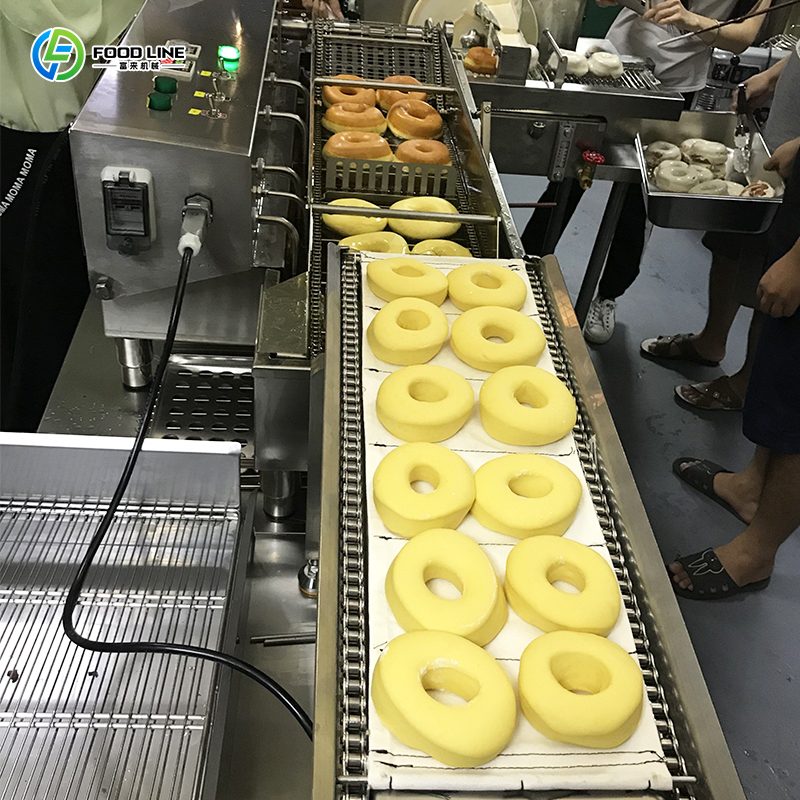

Auto-flip conveyor fryer with microcomputer control
Power45 kW
Max Temp200°C
Fry Time80 sec total

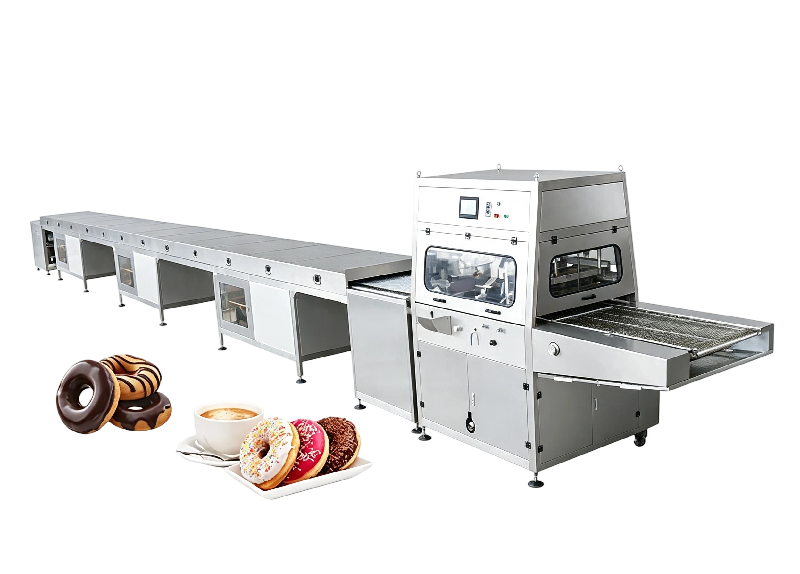

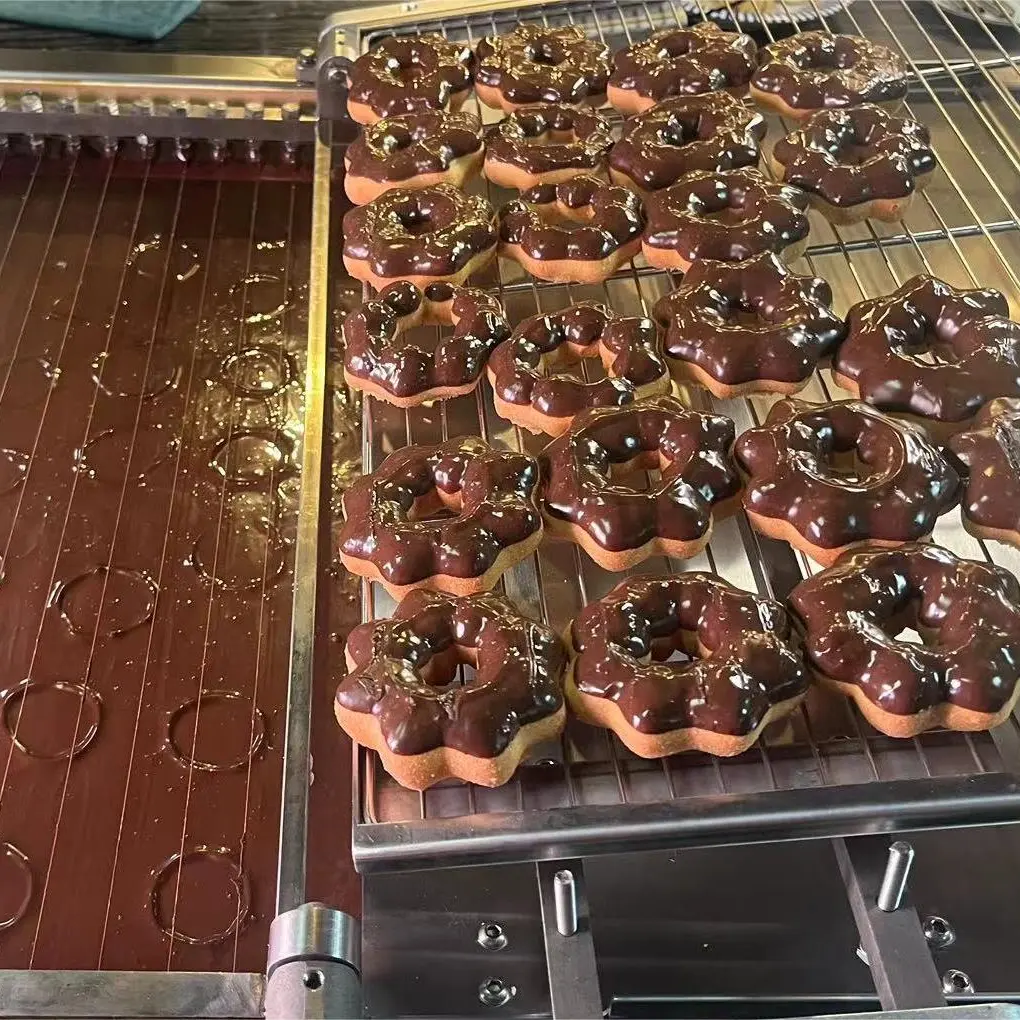

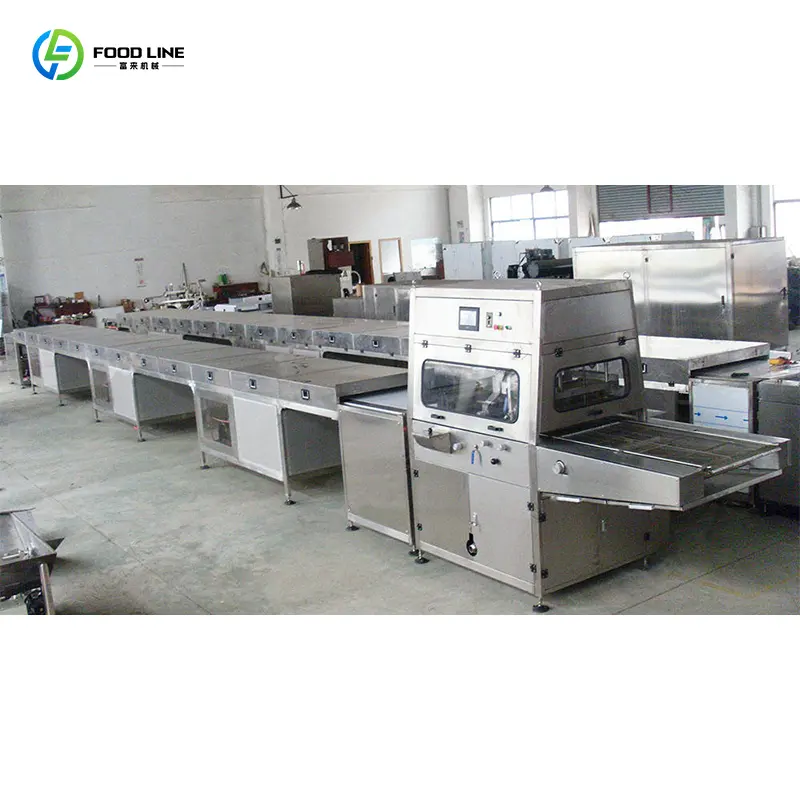

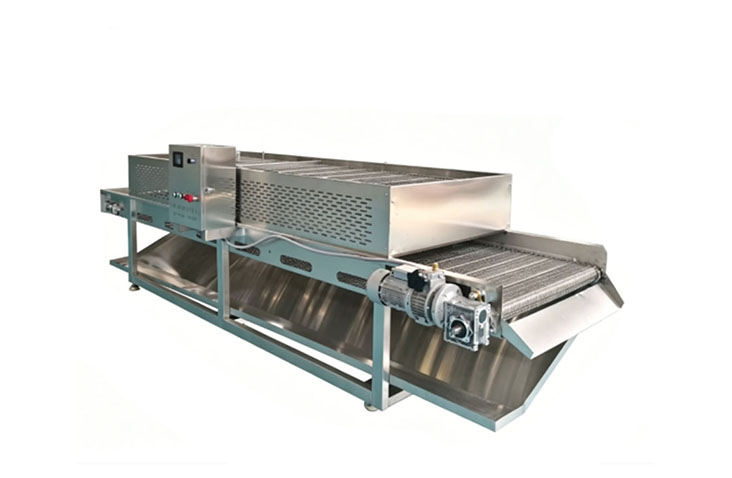

1000mm enrober with 15m cooling tunnel
Width1000 mm
Tunnel15 m length
Material304 Stainless
3000 PCS/H Full Automatic Yeast Donut Press-Cutting Production Line
| Parameter | Specification | Notes |
|---|---|---|
| Production Capacity | 3000 pieces / hour | Standard 80mm donut |
| Donut Diameter | 30 - 100 mm (adjustable) | Custom molds available |
| Proofing Time | ~40 minutes (adjustable) | Depending on recipe |
| Frying Time | 80 seconds total (40s each side) | Auto flip mechanism |
| Control System | Touch screen PLC control | Speed synchronized |
| Main Voltage | 3Phase / 380V / 50Hz | Customizable to local standard |
| Construction Material | Food-grade 304 stainless steel | Contact parts all SS304 |

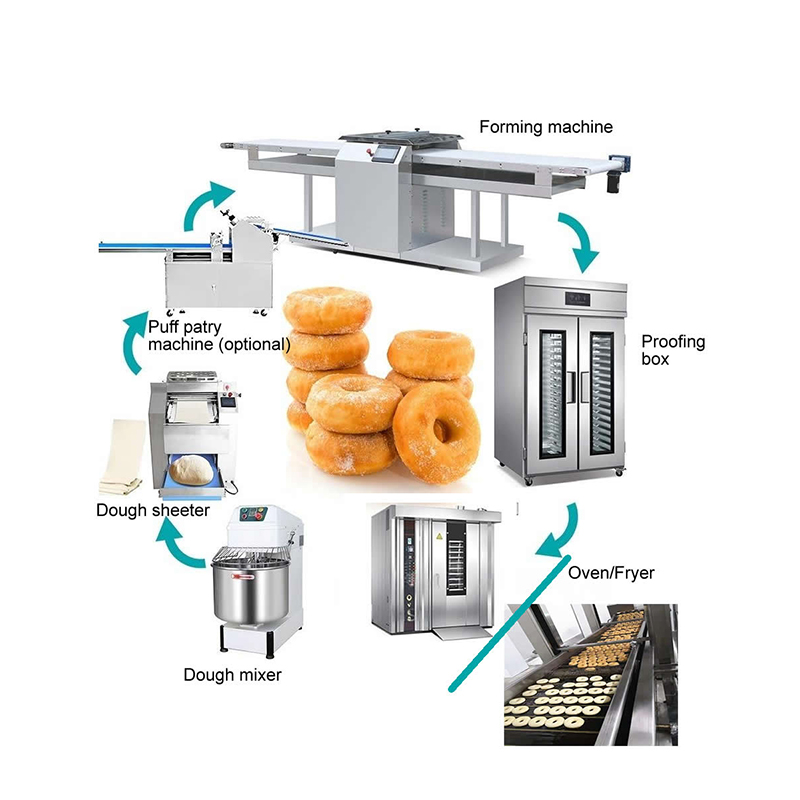

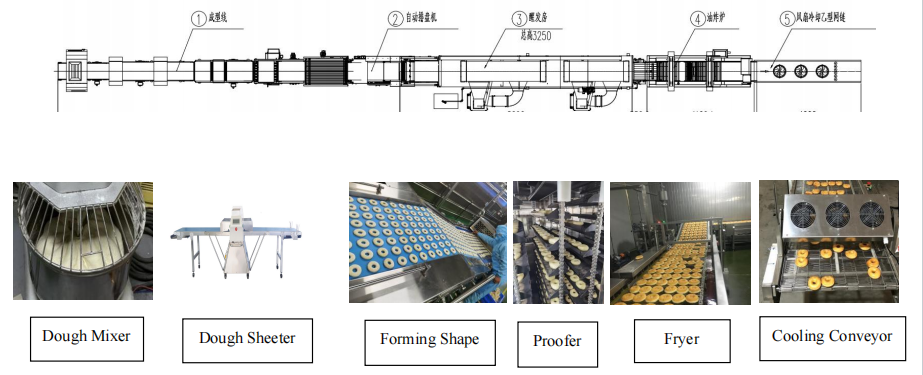

| Process Flow | Mixing → Dividing → Sheeting → Press Cutting → Proofing → Frying → Cooling → (Optional Enrobing) | |
Need custom configuration for your factory?
ISO-certified factory with 20,000m² production area and 20+ years of food machinery expertise
Trusted by food manufacturers across 150+ countries worldwide
Successfully installed donut production lines in bakeries and food factories worldwide
Tell us about your production requirements and our engineering team will design a tailored donut production solution for your business. Free factory layout design and process consultation included.
+86 13939063851
contact@foodlinemachine.com
Henan, China - Factory Direct
7×24 Hours Online Service
We'll reply within 24 hours with detailed quote & solution
Henan FoodLine Machinery Co., Ltd. is a professional manufacturer specializing in food processing equipment with over 20 years of industry experience. Our ISO-certified factory covers 20,000 square meters with 200+ skilled workers.
We provide complete industrial solutions for bakeries, snack factories and food processing plants worldwide. Our donut production lines are exported to 150+ countries and trusted by 92% repeat customers.
Complete turnkey solution from design to installation
Engineer overseas installation & training service
Lifetime technical support & spare parts supply
Customized layout design for your factory
