Maximize your oil production with our upgraded 80-500KG/H Screw Oil Press Palm Oil Extraction Machine. Engineered for exceptional durability and high-efficiency oil recovery, this versatile series flawlessly processes a wide variety of oilseeds and nuts, including palm, coconut, and groundnut. Ranging from 80kg/h to a massive 500kg/h output, our equipment is the ideal choice for both local workshops and medium-scale industrial processing plants. Trusted globally, our screw oil press machines have been successfully installed and operate reliably in Spain, Nigeria, Poland, Thailand, Cameroon, Tanzania, and across numerous Asian markets.
Key Specifications of Screw Oil Press Models
Our machine series is designed to meet different processing volume demands. Review the specifications below to select the right capacity for your oil mill:
| Parameter | Model FL-80 | Model FL-120 | Model FL-150 |
|---|---|---|---|
| Screw Diameter | Φ 80 mm | Φ 120 mm | Φ 146 mm |
| Screw Speed | 69 r/min | 49 r/min | 42 / 63 r/min (Dual Speed) |
| Main Motor Power | 5.5 KW | 11 KW | 30 KW |
| Heater Power | 3 KW | 4 KW | 4.7 KW |
| Capacity (Rapeseed) | 80-120 kg/h | 260 – 400 kg/h | 300 – 500 kg/h |
| Net Weight | 445 kg | 980 kg | 1100 kg |
| Dimensions (L x W x H) | 1550 x 870 x 1580 mm | 2060 x 1345 x 1570 mm | 2700 x 2910 x 1635 mm |
How Does This Screw Oil Press Machine Work?
The screw oil press operates through a highly efficient and continuous mechanical process. First, cleaned oil seeds are fed into the top hopper. As the material descends, the powerfully rotating screw inside the pressing chamber continuously pushes it forward. Simultaneously, the integrated electric heater warms the seeds, significantly boosting oil fluidity and yield.
As the space inside the pressing cage narrows, intense mechanical pressure builds up, effectively squeezing out the oil. The extracted oil neatly flows through the cage slots into a collection pan beneath, while the remaining solid cake is pushed out through the designated discharge port. This smart design ensures that the oil extraction process runs continuously with minimal manual intervention.
Main Features of Our Screw Type Oil Expeller
Robust Construction: The entire frame is precision CNC-welded for perfect alignment, making the expeller incredibly stable and vibration-free during intensive operation.
Food-Grade Contact Parts: All interior surfaces that come into contact with seeds or oil are manufactured from high-quality stainless steel, ensuring the machine meets strict hygiene standards and is easy to clean.
Adjustable Cake Thickness: Operators can easily modify the thickness of the discharged cake via a convenient handwheel, allowing ultimate flexibility when processing different types of raw materials.
Integrated Heating System: A built-in electric heater improves overall oil fluidity, helping the machine achieve maximum extraction rates, especially for stubborn seeds like palm.

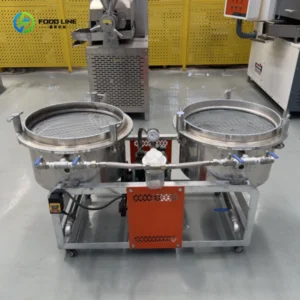

Vacuum Filtration Ready: The machine is perfectly designed to connect seamlessly to an external vacuum oil filter, further clarifying the raw oil for a pure, market-ready finish.
Advantages of the Screw Press Machine For Oil Extraction
High Oil Yield: The scientifically optimized screw structure combined with the heating system ensures maximum seed oil extraction, directly lifting your operating profits.
Enhanced Profitability: Large-scale processing capacities ranging up to 500kg/h drastically raise daily production volume, speeding up your capital payback period.
Easy Maintenance: We supply complete sets of squeezing worm spare parts, allowing for quick, easy replacements to keep your oil press running with virtually no downtime.
Durable Build: Featuring a powder-coated outer shell and stainless inner lining, the machine delivers exceptional anti-wear and anti-corrosion performance over years of use.
Versatile Use: This integrated hot and cold pressing unit efficiently handles a massive variety of oilseeds, including palm, coconut, peanut, rapeseed, sunflower, and more.
FAQs of Oil Extraction Machines
Q1. What materials can this screw oil press process?
This highly versatile machine handles a broad spectrum of oilseeds, including palm kernel, coconut, groundnut (peanut), sunflower, rapeseed, and soybean.
Q2. Can this machine work as a cold press oil machine?
Yes, it seamlessly supports both hot and cold pressing techniques. For cold pressing applications—ideal for preserving high nutritional values—simply turn off the integrated heating device.
Q3. Can I get spare parts easily?
Absolutely. We maintain a full inventory and offer complete spare part kits, including pressing screws, bars, and cake outlets, ensuring prompt replacement whenever needed.
Q4. How pure is the oil after pressing?
The oil extraction machine can be paired with an optional vacuum filter that effectively removes most impurities. For strictly edible-grade oil, further refining steps may be necessary depending on your local market standards.
Oil Machine Manufacturer: Foodline Machinery
Foodline Machinery specializes in the precise design and manufacturing of high-performance oil press machines for a global client base. Whether you require a high-capacity screw press for sheer volume or a precision hydraulic oil press for premium boutique quality, we analyze your exact needs and deliver custom solutions.
Our robust machinery operates successfully across Spain, Nigeria, Poland, Thailand, Cameroon, Tanzania, and beyond. We have tailored entire oil processing plants in over 20 countries—proudly serving small cooperative workshops and large industrial oil mills alike. (Recent cases include a 500KG/H Sunflower line shipped to Tanzania, a 400KG/H Palm unit to Spain, and 3 Cold Press Extractors to Sweden!)
Ready to Elevate Your Oil Production?
Fill out the inquiry form today, and our expert team will send you a customized quotation and video demonstration within 24 hours.
