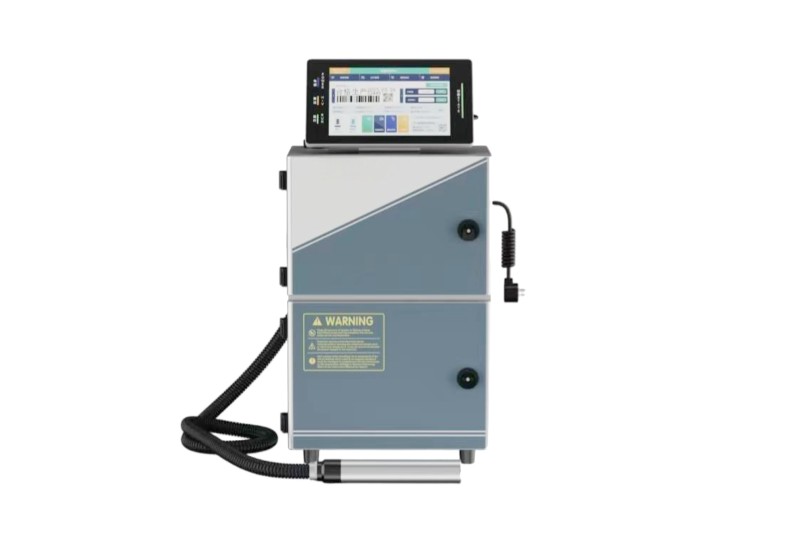

Industrial Small Character Inkjet Printer
As a professional food machinery manufacturer and exporter for more than 20 years, we build high-quality machinery with our superior factory strength and adhere to the concept of high quality and low price. We provide you with more cost-effective productivity solutions to help enterprises reduce costs and increase efficiency!

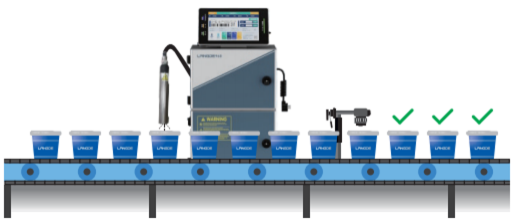

The small character inkjet printer is engineered for medium to high-frequency and high-speed production lines. It combines cutting-edge Industry 4.0 intelligence with robust hardware to deliver a perfect marking experience.
Core Advantages & Intelligent Features
Industry 4.0 & SCloud Service
Step into the future of manufacturing with our exclusive SCloud cloud service platform. The system offers real-time remote monitoring, predicting potential issues to ensure uninterrupted production. You receive instant APP notifications directly to your mobile device for seamless management, alongside one-click remote assistance and upgrades.
Superior Hardware & Operating System

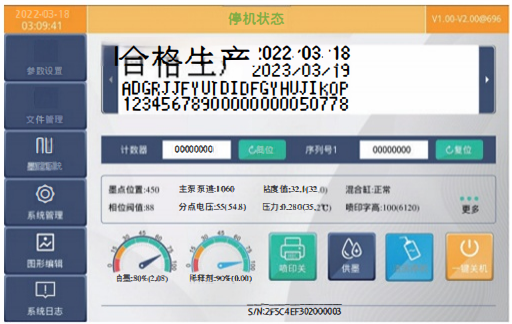

Powered by a 32-bit embedded ARM architecture and a high-speed 8-core CPU running on a professional Linux operating system, the printer guarantees smooth, ultra-fast performance. Operators interact through a 10.1-inch color LED touch screen featuring a WYSIWYG (What You See Is What You Get) image and text menu.
Advanced Auto-Cleaning System
Maintenance is drastically reduced thanks to the fully automatic cleaning functionality.
Equipped with an independent cleaning pump that automatically sprays diluent to clean the nozzle and recovery pipe upon shutdown.
Features a unique four-valve nozzle structure that ensures ink is completely cleaned from the system and returned to the tank.
The nozzle piece can be individually detached and placed in an ultrasonic container to thoroughly resolve any blockages.
Smart Ink Viscosity Control
Environmental changes won't affect your print quality. The printer utilizes an advanced independent viscometer that continuously monitors both ink viscosity and environmental temperature. It automatically performs closed-loop adjustments to maintain perfect printing stability.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Print Lines & Dots | 1-5 lines (5x5 dot matrix). Supports 5x5, 5x7, 7x9, 6x12, 8x16, 12x16, 11x24, 16x32, 34 dot matrix within self-edited information. |
| Printing Speed | Up to 5.4m/sec (5 dot matrix), 5.25m/sec (7 dot), 4.08m/sec (9 dot). |
| Print Height & Distance | Height: 1~15mm (adjustable). Distance: 5~20mm (adjustable). |
| Language Support | Chinese, English, German, Korean, Vietnamese, Arabic, Turkish, Spanish, French, Persian, Portuguese. |
| Printing Content | Date, time, automatic date/validity, batch number, serial number, self-edited patterns, variable barcodes, variable QR codes, anti-counterfeiting codes. |
| Interfaces | USB, RS232, Ethernet, RS485, photoelectric switch input, alarm output, encoder input. |
| Physical Specs | Dimensions: 318x365x722mm | Weight: 25kg. |
| Power & Environment | Voltage: 80W, 260VAC, 50-60HZ | Temp: -10°C~45°C | Humidity: 10~95% non-condensing. |
| Protection Level | IP55 rating with a wear-resistant stainless steel chassis and unique nozzle positive pressure wind function to resist dust and water. |
Flexible and Powerful Applications
Whether you are in food & beverage, building materials, daily chemicals, or wire & cable industries, the printer adapts to your needs. It supports online printing of anti-counterfeiting codes and variable barcodes. The all-digital smart menu system allows you to edit non-working information while the machine is running, switching print content instantly.
