If you are running a beverage factory, yogurt processing plant, food packaging workshop or catering production line, a stable automatic cup filling and sealing machine is essential to boost your packaging efficiency and cut labor costs. Our QCF series cup filler sealer integrates automatic filling, film sealing, mold forming, and continuous conveying in one full stainless steel machine, widely applicable for various cup, bowl, box and aluminum foil container packaging.
Core Advantages of Our Cup Filling Sealing Machine
Simple Stable Mechanical Structure: The whole machine adopts food-grade 304 stainless steel frame, modular design for filling and sealing stations. Less vulnerable parts, easy daily cleaning and maintenance, greatly reduce your machine downtime.
Wide Application Range: This filling sealing equipment fits coffee capsules, porridge cups, yogurt beverage cups, fresh food crisper, mooncake pastry trays, meat skin packaging, duck blood boxes and all kinds of aluminum foil containers. One machine meets multi-scene packaging demands.
Exquisite & Tight Sealing Effect: Equipped with constant temperature heat sealing system, the sealing edge is flat, no leakage, no bubble. Perfect for liquid, semi-liquid, solid food long-term fresh preservation.
Customizable Production Solution: We support custom mold size, filling volume, production speed, voltage (380V 50Hz/60Hz adjustable) and machine length according to your factory layout. We have multiple models for small batch and mass production.
Factory Direct Supply & Complete After-Sales: We are a professional strength machinery manufacturer with independent workshop. All machines are tested before delivery, we provide overseas installation guide, operation training and spare parts supply service.
Complete Machine Technical Parameters (QCF Series Two Models)
| Item | QCF-10 | QCF-12 |
|---|---|---|
| Packaging Speed | 9000-10000 piece/h(adjustable) | 10000-12000 piece/h(adjustable) |
| Filling Content | 0-50ml(adjustable) | 0-50ml(adjustable) |
| Voltage | 3-phase 4-line socket(380V50HZcustomized) | 3-phase 4-line socket(380V50HZcustomized) |
| Electric Motor Power | 1.0KW | 1.0KW |
| Heat Up Power | 4KW | 3KW |
| Air Pressure | 0.5MPa-0.75 MPa | 0.5MPa-0.75 MPa |
| Maximum Air Consumption | 0.45m³/m | 0.45m³/m |
| Size(L*W*H) | 3700*920*1900mm | 3900*1020*1900mm |
| Weight | About1000kgs | About1300kgs |

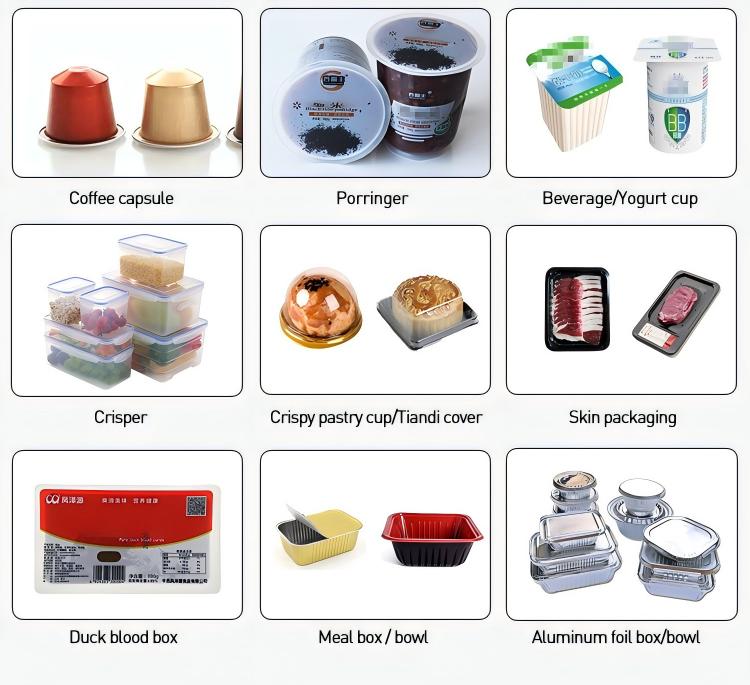

Wide Application Scopes
Our automatic filling sealing machine serves all food packaging industries:
Drinks & Dairy: milk tea cup, yogurt cup, porridge cup, coffee capsule
Cooked Food & Catering: disposable lunch box, aluminum foil meal bowl, duck blood plastic box
Pastry & Fresh Meat: mooncake tray, pastry cup, fresh meat skin packaging box
Daily Fresh Storage: transparent plastic fresh food crisper

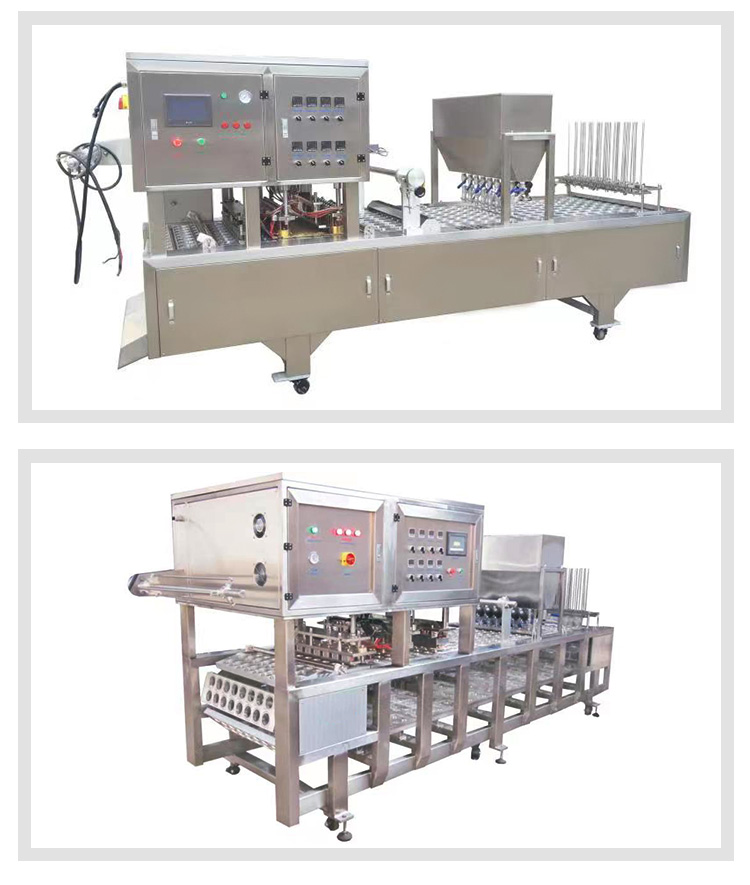

Machine Details & Craftsmanship

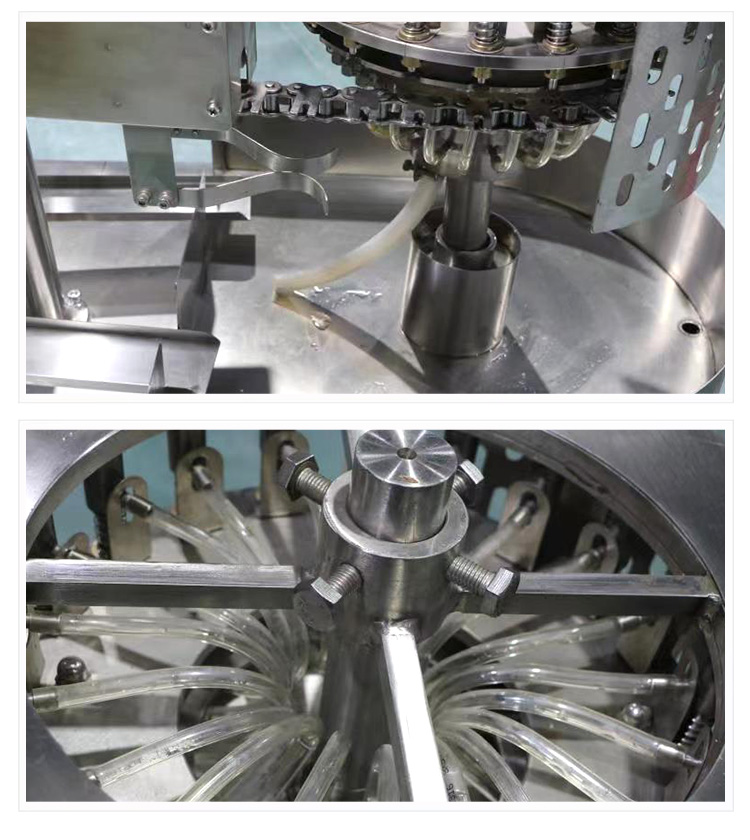

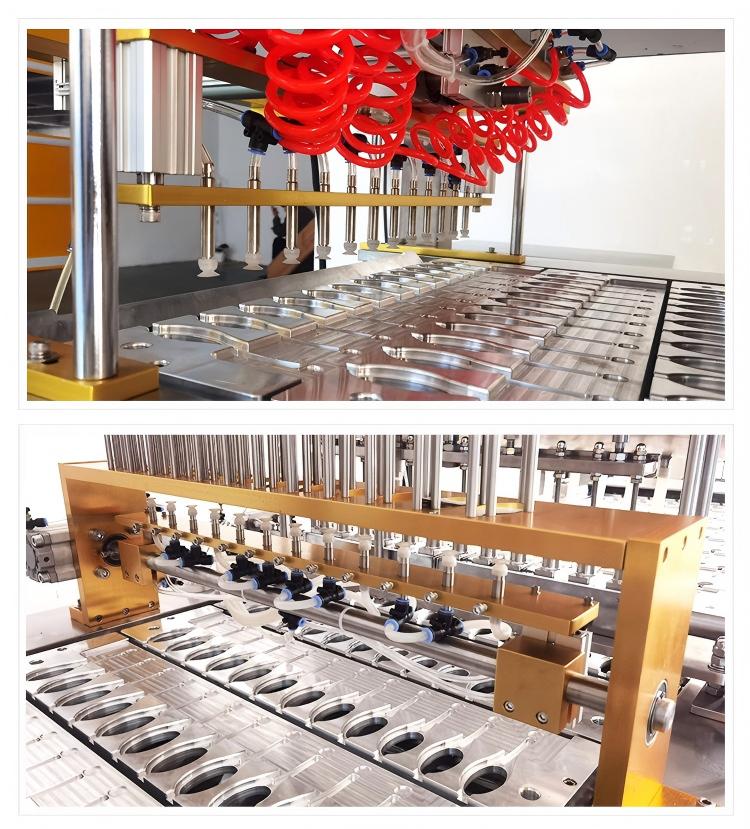

All key contact parts with food are food-grade stainless steel, anti-corrosion and easy to wash. The filling pump assembly adopts independent adjustable liquid injection nozzles, synchronous chain conveying structure ensures stable cup feeding without deviation. The electrical control cabinet uses touch screen + button dual control mode, workers can set filling volume, heating temperature, conveying speed in one screen simply.

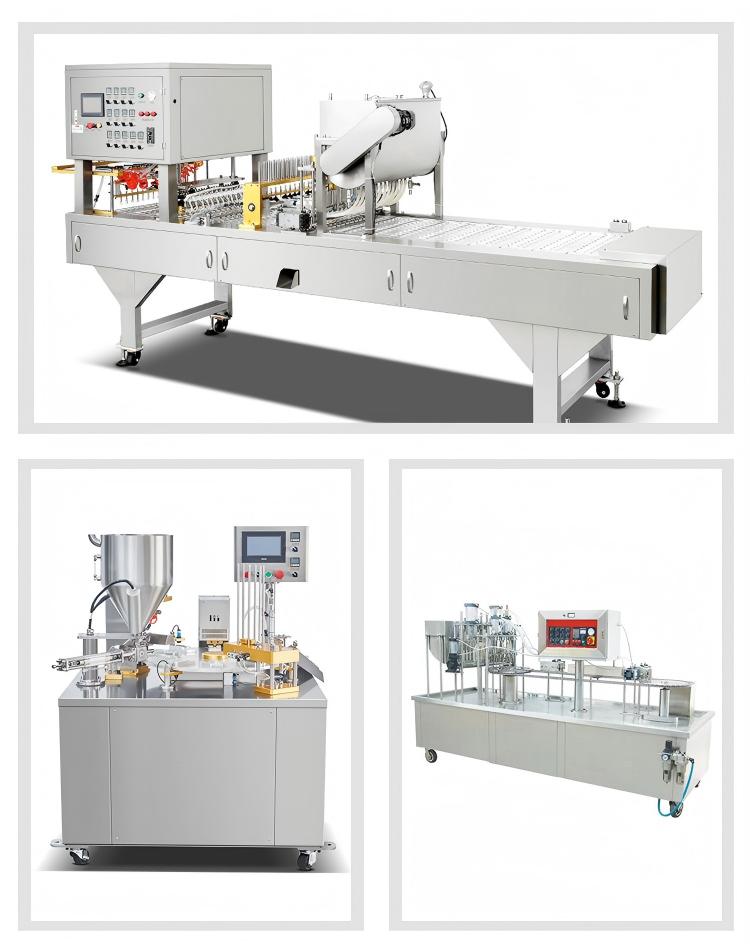

We also provide multiple alternative machine models for different production capacity demands, from small semi-automatic desktop cup sealers to full-automatic long continuous production lines.
Safe Wooden Case Packaging & Global Shipping
All machines will be packed with thick export wooden crates with shockproof, moisture-proof marks to avoid damage during long sea/air transport. We support multi-logistics solutions: sea freight, air freight, land truck delivery. We have rich experience in exporting machinery to India, Southeast Asia, Middle East, Europe, Africa and Latin America, we can handle export documents for you.
About Our Factory – Henan Foodline Machinery Co., Ltd
We are a comprehensive large-scale machinery manufacturer located in Zhengzhou, China, integrating R&D, production and after-sales service for food packaging machines. Our factory owns standardized production workshop, strict product testing process. Over the years, we have received thousands of overseas customers visiting our workshop for machine inspection and cooperation negotiation. We always adhere to technology-oriented production, provide stable machinery and win-win cooperation for global partners.
Contact Us To Get Your Ideal Cup Filling Sealing Line
No matter you need a single filling sealing machine or a full automatic packaging production line, our engineer team can design exclusive solution according to your product, factory space and output target. Leave your WhatsApp/Email, we will reply you within 24 hours with catalog, price list and machine video.
