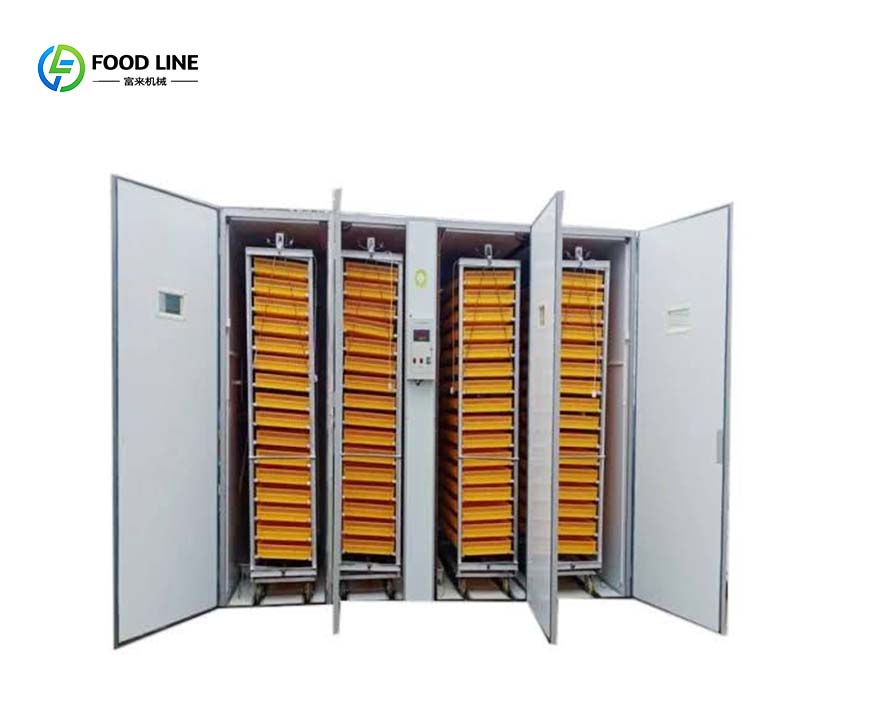

Foodline Commercial Egg Incubator — Industrial-grade automated hatchery solution: Massive Capacity: Handles 5,280 up to 50,688 eggs. Precision Control: Fully automated turning, ventilation, and moisture stabilization. High ROI: Delivers a 90%+ hatch rate while significantly cutting manual labor expenses.
Medium Commercial Egg Incubator Line
Large Industrial Egg Hatcher Plant
Advanced Internal Engineering & Operational Subsystems
Achieving a stable, high-yield embryonic environment requires uniform resource management across the entire cabinet interior:
🧠 Intelligent Microcomputer Controller: A fully integrated digital control console automatically oversees preset programs. Features real-time parameter tracking displays and immediate audio-visual fault alarm systems for abnormal readings.
🌀 360° Circular Thermal Airflow System: Dual ventilation loops utilizing high-efficiency internal circulation fans and smart exhaust gates eliminate hot or cold micro-zones. This uniform top-to-bottom thermal distribution creates pristine balanced incubation variables.
💧 Automated Safe Humidification Loop: Built with dedicated high-output humidification pipelines that prevent shell desiccation. The smart design features an automatic power-off mechanism to cut off electricity once the integrated water tank hits full capacity.
🔄 Heavy-Duty Copper Egg Turning Assembly: Heavy all-copper internal industrial wiring drives a strong, highly durable mechanical structure. It triggers automatically every 90 minutes to turn eggs precisely 45 degrees, providing symmetric heat absorption.
🛒 Ergonomic Mobile Trolleys & Rails: Outfitted with adjustable multi-layer tray grids sitting on high-durability floor casters and integrated guide rails. Egg handling, loading, and structural rotation become swift, simple manual tasks.
Industrial Equipment Parameter Matrix
Select the model size that matches your hatchery facility workflow goals. Every configuration is designed to optimize electricity consumption relative to maximum output:
| Model Specification | Egg Capacity (pcs) | Packaging Size (W×D×H cm) | Net Weight (kg) | Total Power (W) | Power Consumption (W) |
|---|---|---|---|---|---|
| FL-5280 | 5,280 | 181 * 109 * 188 | 330KG | 2000 W | 1450 W |
| FL-8448 | 8,448 | 188 * 190 * 200 | 410 kg | 3000 W | 1600 W |
| FL-12672 | 12,672 | 278 * 190 * 220 | 620 kg | 4500 W | 1900 W |
| FL-22528 | 22,528 | 368 * 190 * 260 | 880 kg | 6000 W | 2300 W |
| FL-33792 | 33,792 | 732 * 190 * 220 | 1080 kg | 9000 W | 3800 W |
| FL-50688 | 50,688 | 1104 * 190 * 220 | 1800 kg | 13500 W | 5400 W |
Versatile Multi-Species Application Capability
The modularity of the tray locking system allows seamless, variable calibration across multiple distinct poultry variants without hardware replacement:
🐔 Chicken Breeding Farms: Provides dense setting capabilities for rapid layer and broiler multiplication programs.
🦆 Duck Hatchery Projects: Accurate humidity tracking routes ensure optimal shell breakdown for waterfowl.
🪿 Goose & Turkey Incubations: Accommodates heavy artisanal eggs securely on robust anti-vibration trays.
🪶 Quail & Game Bird Programs: Custom delicate spacer frames prevent micro-fissures in ultra-light wild game shells.
Why Choose Foodline Machinery for Poultry Hatchery Integration?
Foodline Machinery is a worldwide developer and manufacturer of industrial self-service equipment and commercial agricultural hardware. We hold extensive engineering expertise in configuring high-capacity, all-in-one incubator and hatcher installations. Our technical support team works closely with global distributors and farm operators to manage custom component styling, capacity updates, and country-specific electrical conversions—ensuring seamless integration into your local factory infrastructure.
📩 Contact Our Incubation Engineering Specialists: Hotline/WhatsApp: +86 13939063851 | Email: contact@foodlinemachine.com
