From 0.3-liter high-speed beverage lines to massive 25-liter large-capacity water jugs, we deliver reliable fully-automatic and semi-automatic PET blow molding systems engineered for maximum efficiency, precision, and low energy consumption.
139390638517*24小时服务热线
FoodLine Machinery provides customizable mold and blowing solutions for various shapes, volumes, and neck types to meet worldwide packaging standards.
Mineral Water & CSD：High-speed, lightweight design molds for standard 350ml, 500ml, 1L, and 1.5L drinking water and carbonated soft drink bottles.
Edible Oil & Condiments：Specialized heavy-duty multi-cavity molds for 1L to 5L large-handle cooking oil bottles, soy sauce, and vinegar containers.
Cosmetics & Home Care：Flawless surface finish solutions for shampoo bottles, body wash dispensers, detergent jugs, and clear cosmetic jars.
Wide-Mouth & Jars：Advanced precise preform stretching for wide-mouth food cans, candy jars, and pharmaceutical supplement bottles.

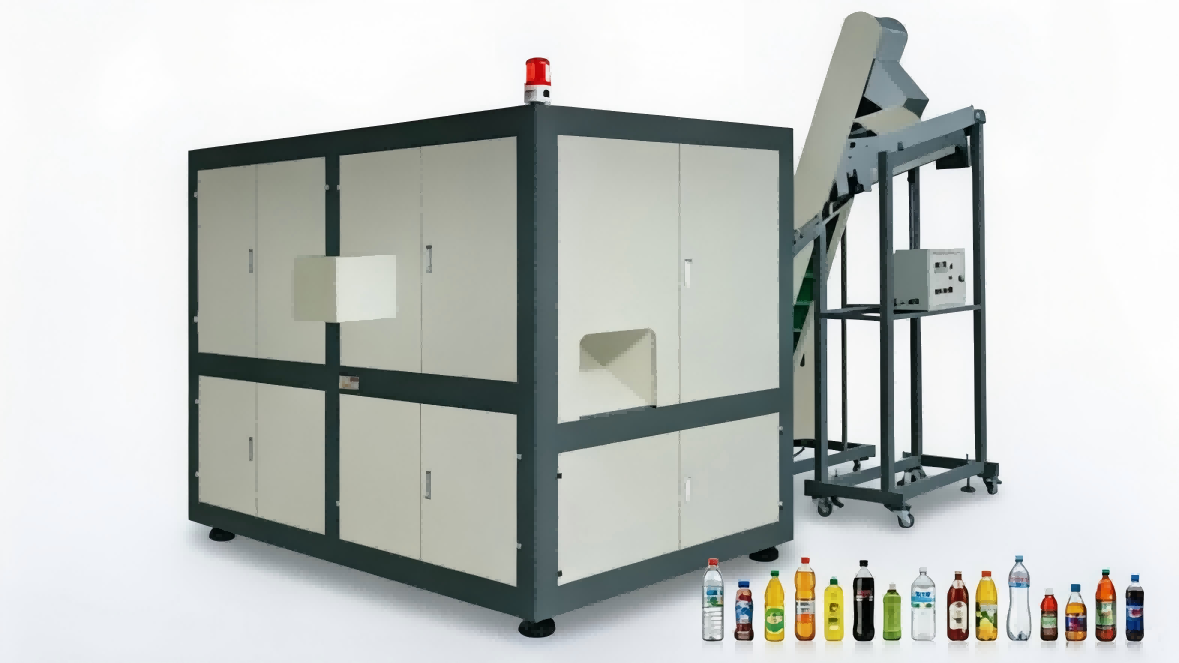

YC-S2 / YC-1500A Series
Equipped with advanced touch screen PLC and FESTO pneumatics for high-reliability premium line integration.
| Control System | Advanced PLC Touch Screen |
| Best Application | Water, Juice & Carbonated CSD Bottles |
| Number of Cavity | 2 Cavities |
| Max Bottle Volume | 2.0 L (PET Material) |
| Theoretical Output | 1200 - 1500 BPH (Bottles Per Hour) |
| Blowing Pressure | 2.0 - 3.0 MPa |

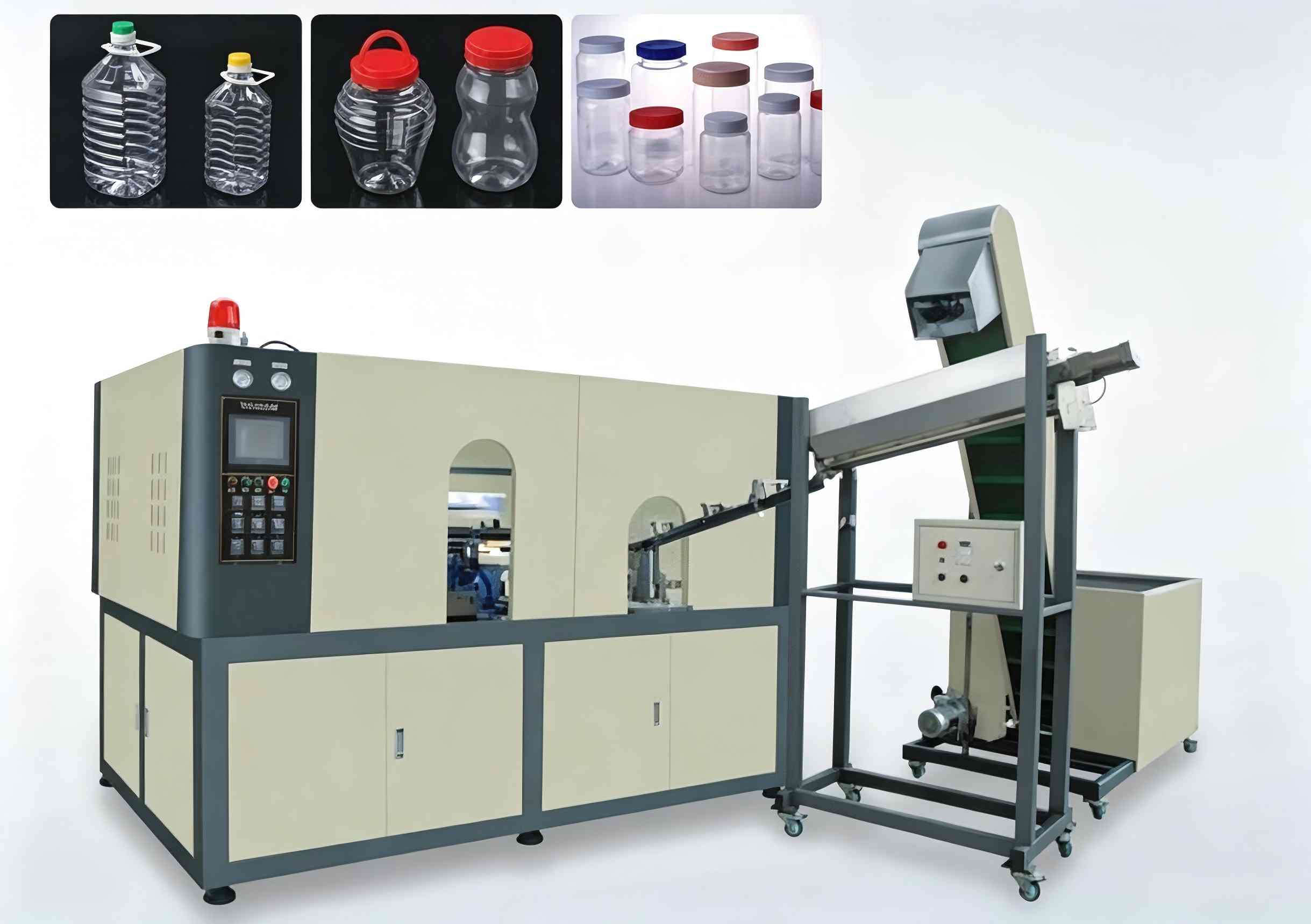

YC-5000A
Specially designed for large capacity containers including 3L-6L edible oil bottles, 1-5L wide-mouth jars, and large volume water bottles. Features WEINVIEW touch screen and German FESTO/Japan SMC pneumatic elements.
| Theoretical Output | 500 - 700 Pcs/hr |
| Container Volume | 5 L (Max 3L - 6L) |
| Cavity | 1 Pc |
| Preform Inner Diameter | 120 mm |
| Max Bottle Dimensions | Diameter: 200mm | Height: 350mm |
| Main Machine Size | 2.65 × 1.85 × 2.1 M |
| Machine Weight | 2.3 T |
| Installation Power | 35 KW (Max Heating: 33 KW) |

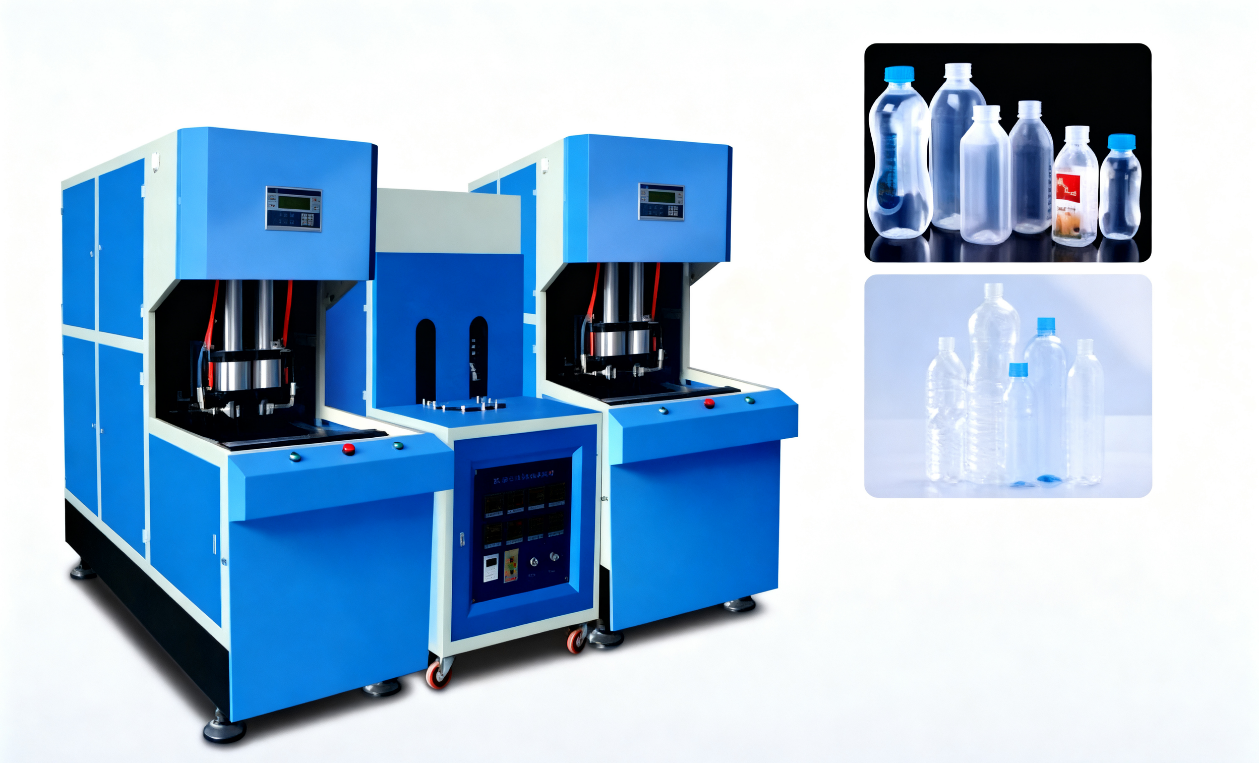

YC-B2000
Expertise within blowing 2-liter mineral water, beverages, oil, cosmetics, and pesticides bottles. Compatible with PET, PP, PMMA, PC, and PS raw materials. Features a small footprint, low electricity consumption, and easy operation.
| Theoretical Output | 1500 - 2200 Pcs/hr |
| Max. Volume of Product | 2 × 2 L |
| Neck Size of Product | < 75 mm |
| Clamping Force | 80 kn |
| Stretching Stroke | 380 mm |
| Blowing Air Pressure | < 3.0 Mpa |
| Power of Preheater | 11 KW |
| Main Blower Weight | 485 kg |

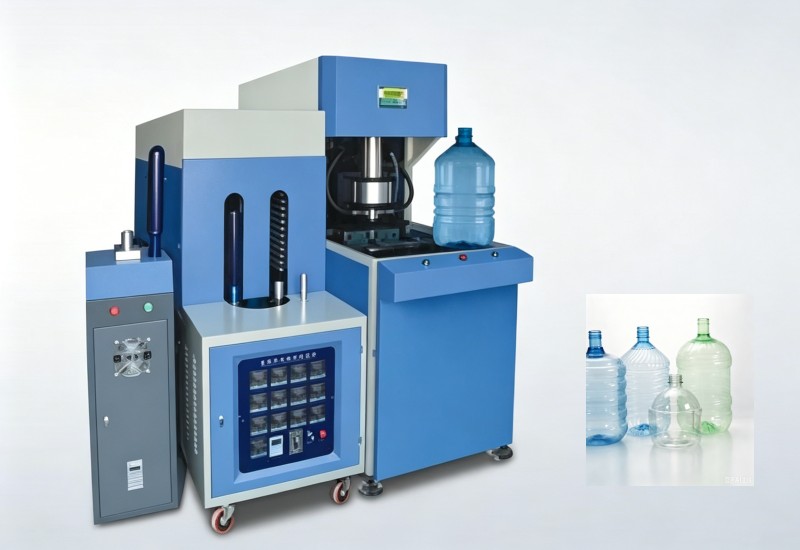

YC-5P
Specially designed to produce 3 gallon to 5 gallon large bottles. Widely used to manufacture any shape of plastic containers from PET with neck diameters from 15mm up to 200mm. Compact construction, easy operation by one person, and economic investment.
| Theoretical Output | 60 - 180 Pcs/hr |
| Max. Container Volume | 25 L (3 to 5 Gallon) |
| Cavity | 1 Pc |
| Max. Neck Diameter | 150 mm |
| Max. Bottle Dimensions | Diameter: 300mm | Height: 500mm |
| Mould Opening Stroke | 318 mm (Adjustable) |
| Blowing Pressure | 2.0 - 3.0 MPa |
| Machine Dimension | 2.18 × 0.77 × 1.96 M |
| Machine Weight | 1000 kg |

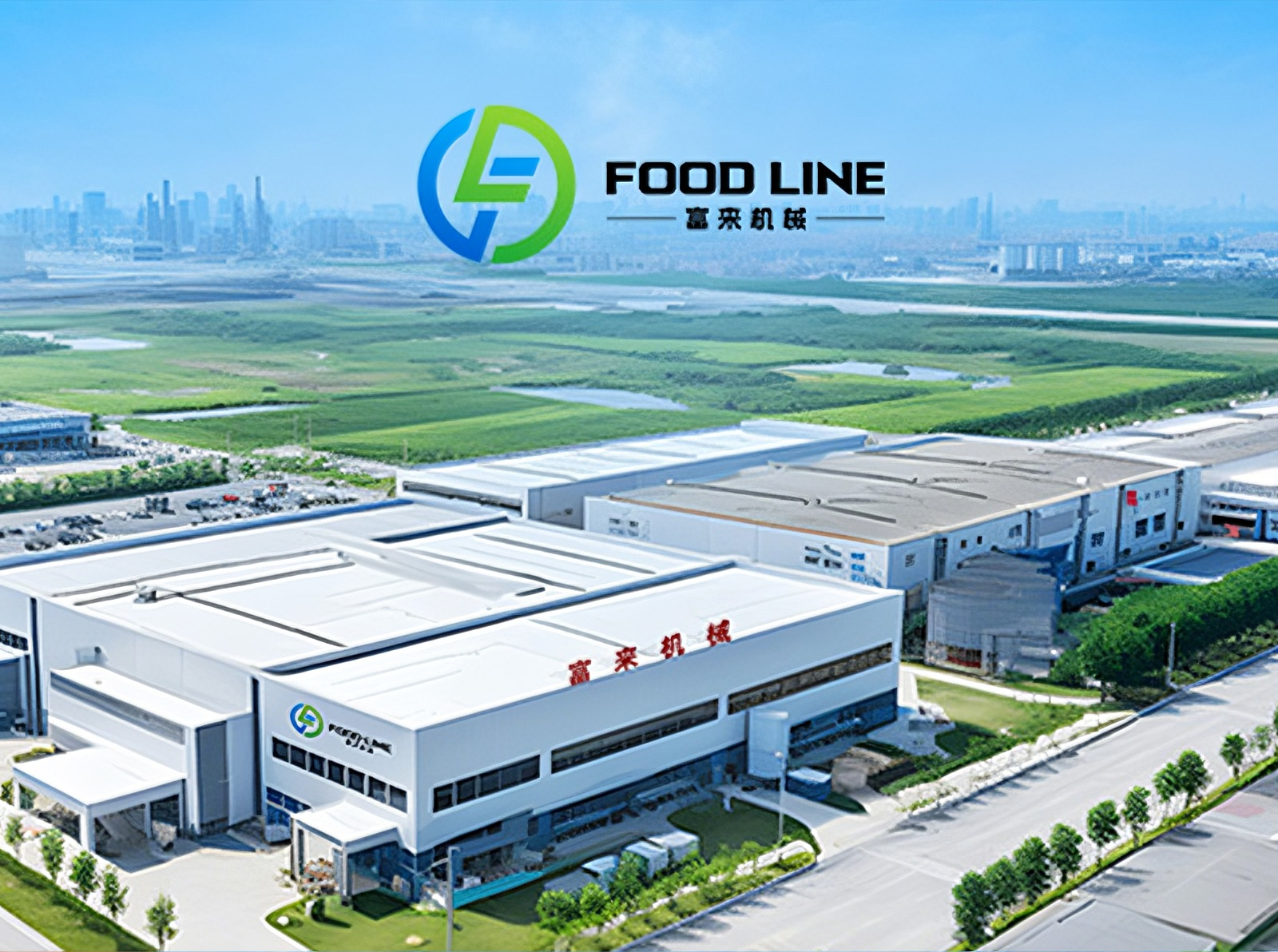

FoodLine Machinery is a world-class professional manufacturer specializing in high-performance PET blow molding machines and integrated bottling plant turnkey solutions. Over the years, we have combined advanced machinery automation with rigorous manufacturing standards to serve factories in over 50 countries. From initial 3D bottle prototyping and plant layout planning to custom mold fabrication and overseas installation support, we stand as your reliable factory partner to maximize production uptime and reduce operational overheads.
