Fully Automatic Sushi Production Line for High-Volume Manufacturing
Integrated 4-stage processing — rice sheeting, filling injection, automatic rolling & rotary cutting. Produces 70–100 perfect sushi rolls per minute with zero manual contact.

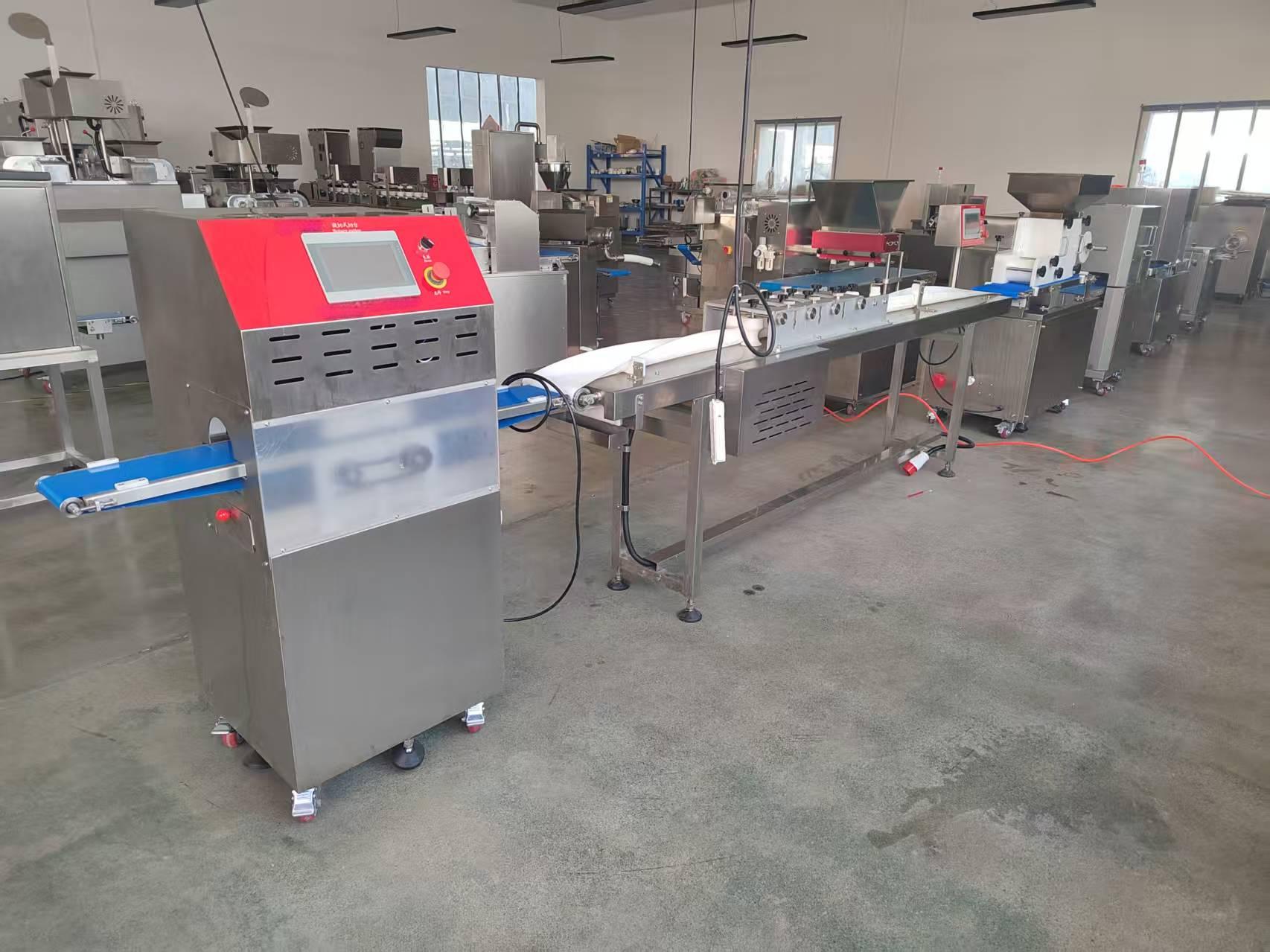

Watch the Sushi Production Line Run
See how our fully integrated line transforms raw ingredients into perfectly portioned sushi rolls — from rice sheeting to high-speed rotary cutting.
Full production line demonstration — request the complete video via our inquiry form
Engineered for Industrial-Scale Sushi Production
Every component is designed for maximum throughput, food safety, and consistent quality — replacing 10–15 manual workers per shift.
Premium Food-Grade Architecture
Built entirely with high-standard SUS304 stainless steel casing and structural members. Food-approved PU belts and specialized PE forming molds ensure maximum food safety and rapid washdown capability.
Exceptional Industrial Throughput
Sheeting and rolling modules sustain a continuous velocity of 7–10 meters/minute, while the integrated cutting module cleanly segments 70–100 pieces/minute — effectively displacing 10–15 manual laborers.
High Modular Flexibility
Fully accommodating to different product specifications. Roll diameter is smoothly adjustable within 40–60mm, sheet width from 120–170mm. Supports both normal and reverse rolling configurations for diverse sushi types.
Direct-Driven Filling Feeder
Horizontal filling design with anti-bridging setup consistently distributes various complex paste, meat floss, or vegetable fillings — without crushing or damaging the ingredients' delicate textures.
Flawless Rotary Precision Cutting
Rotary blade technology guarantees clean cuts without crushing individual rice grains or sticking to the blade. Features digitally adjustable slicing intervals and integrates seamlessly with automatic packaging lines.
Hygienic & Easy to Clean
Tool-less disassembly of contact parts, seamless welds, and sloped surfaces eliminate food trap zones. Full washdown design meets HACCP and international food processing standards for cold-chain production.

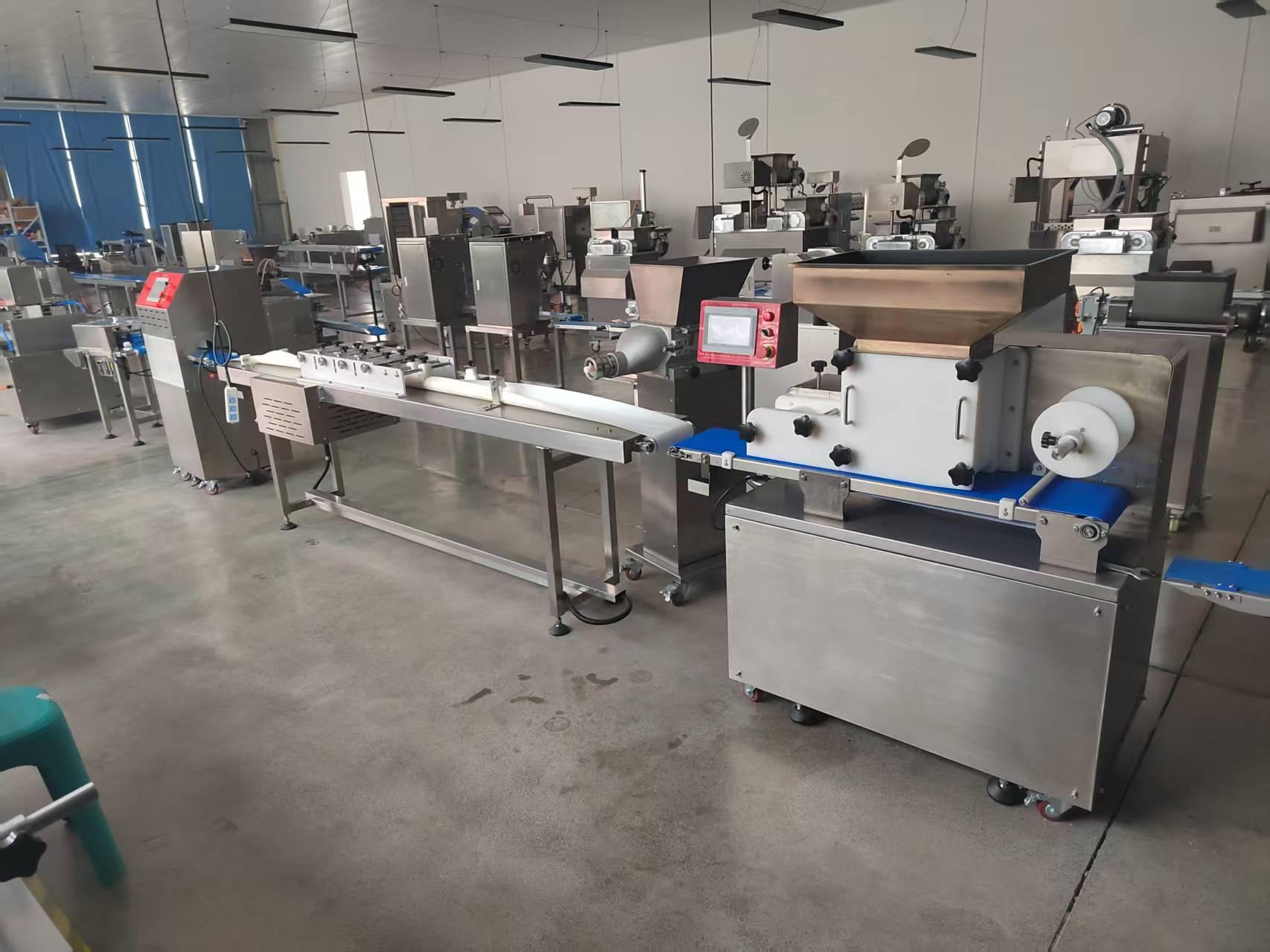

Four Integrated Modules, One Seamless Line
Each module can operate independently or synchronize into a fully automated production line — configurable to your factory layout and output requirements.

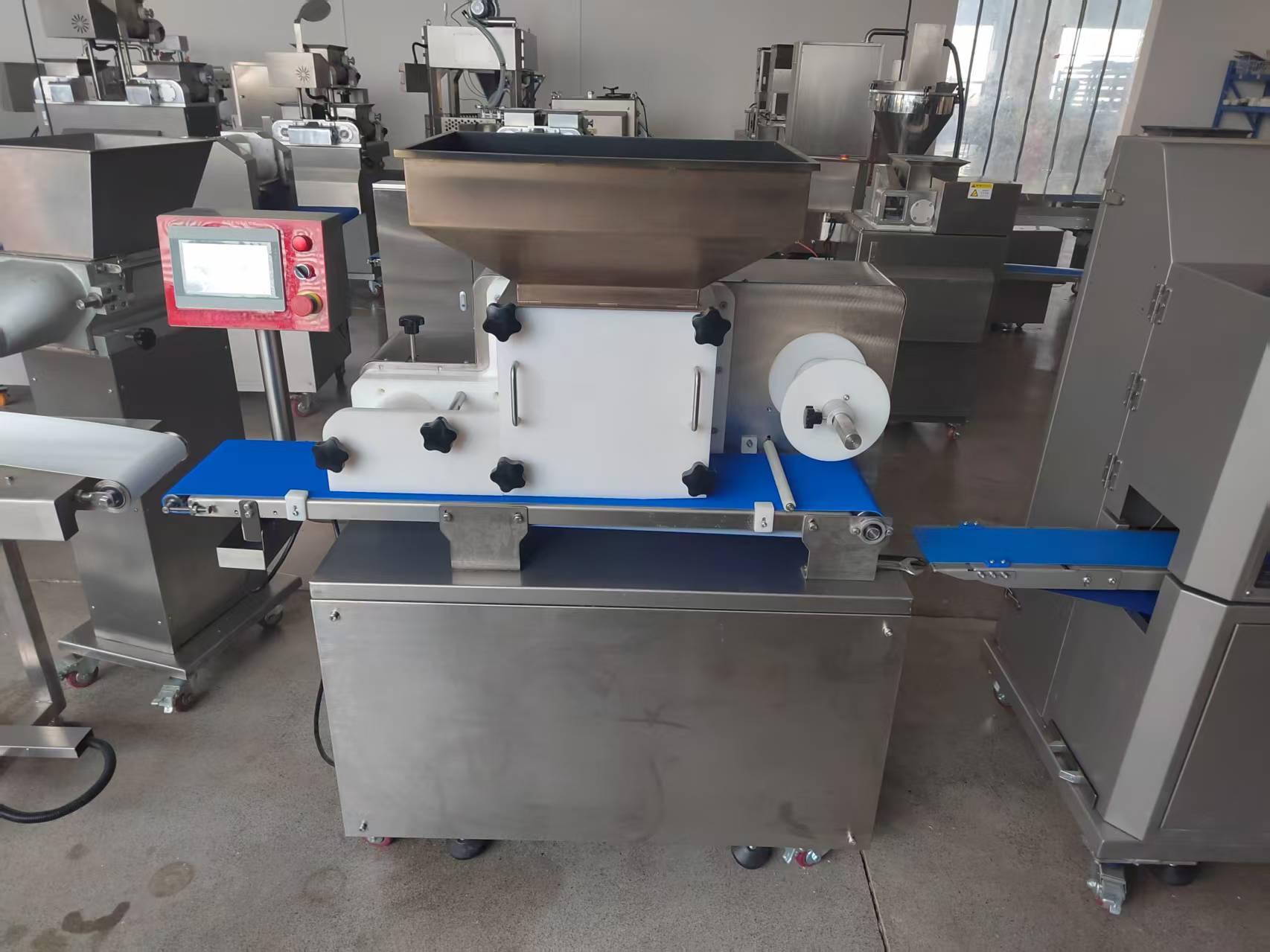

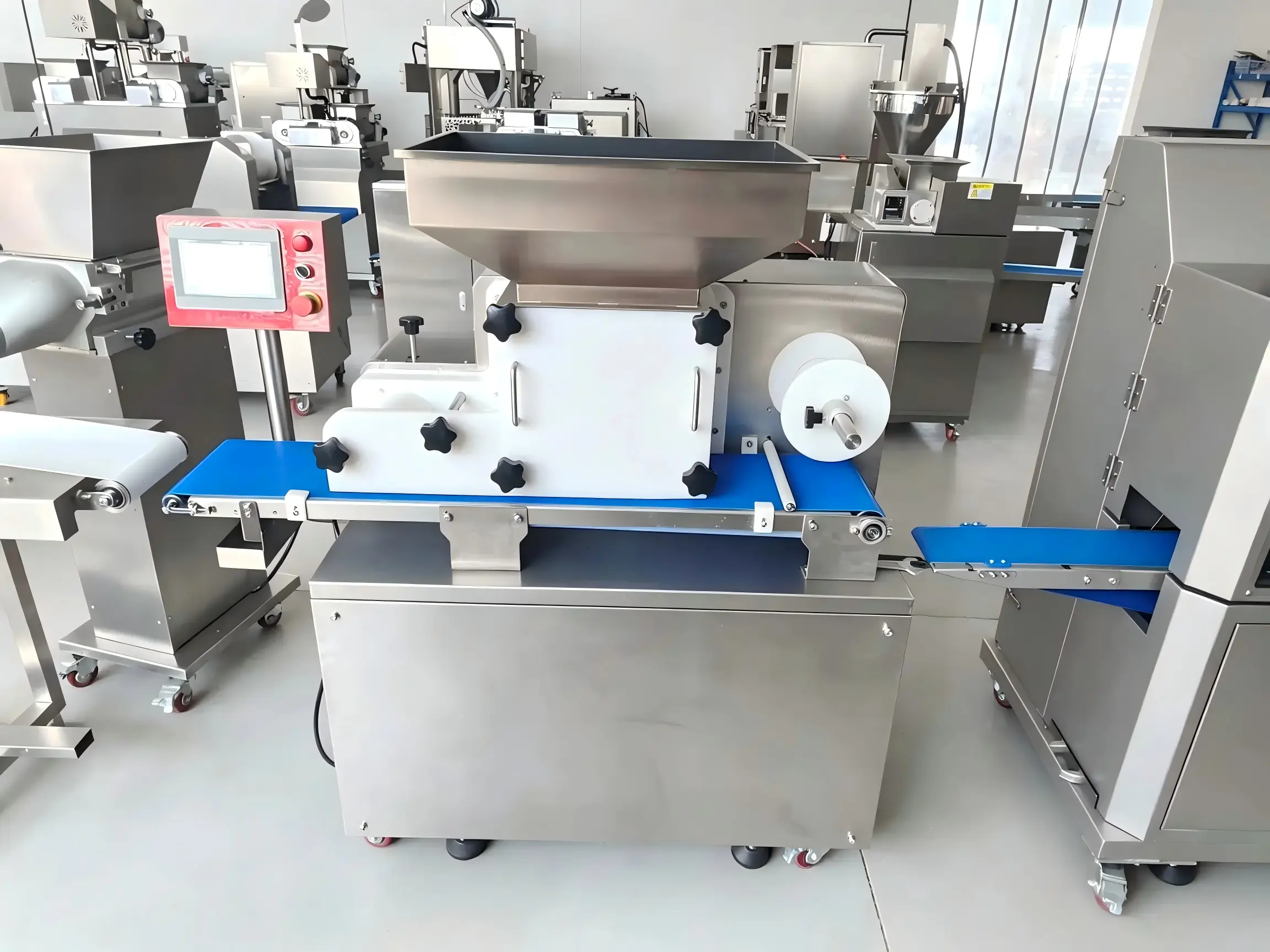

Sushi Rice Molding Machine
Precision rice sheeting module that forms uniform sushi rice sheets with consistent thickness and density. Adjustable sheet width from 120–170mm to match various roll specifications.

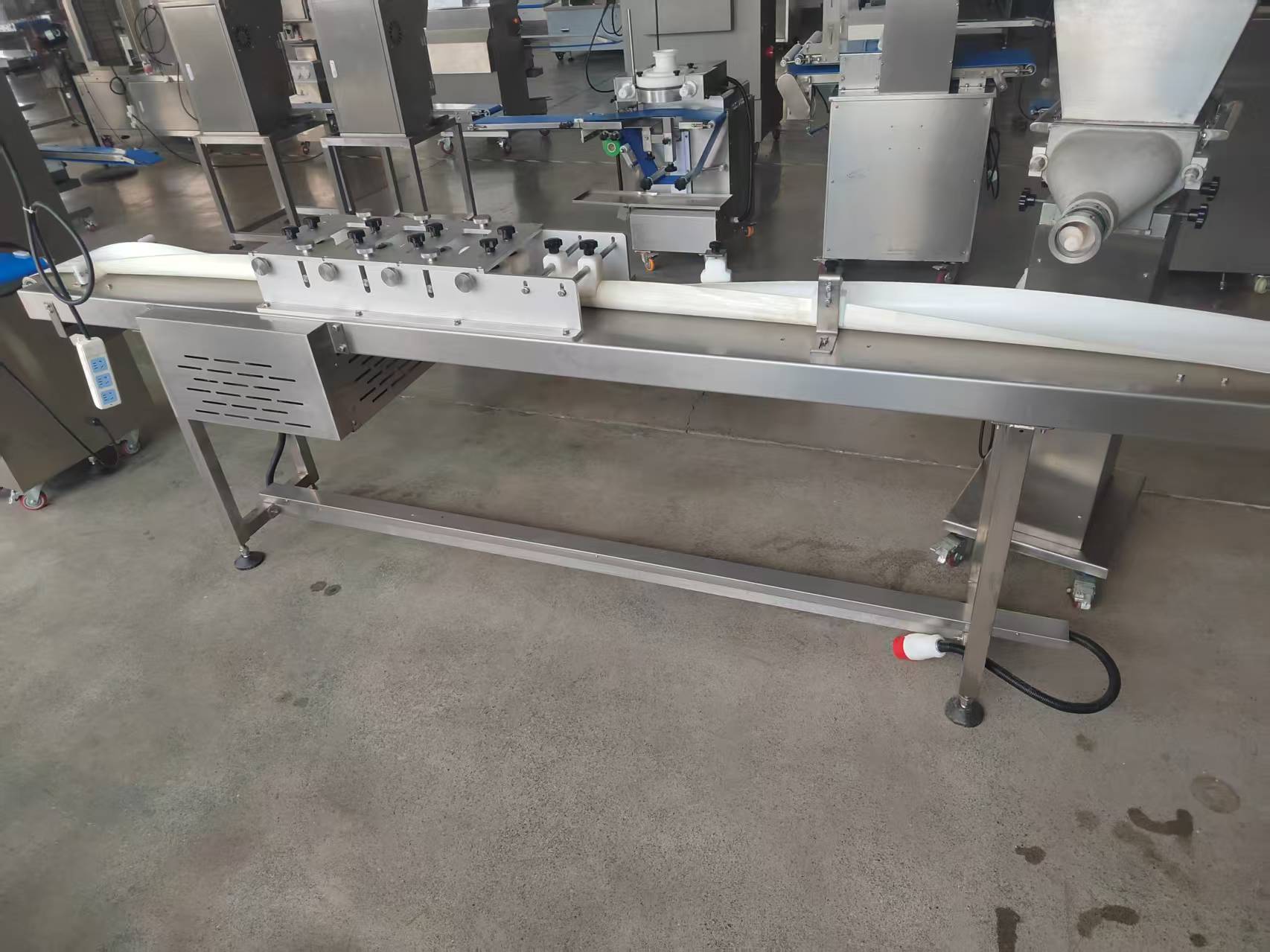

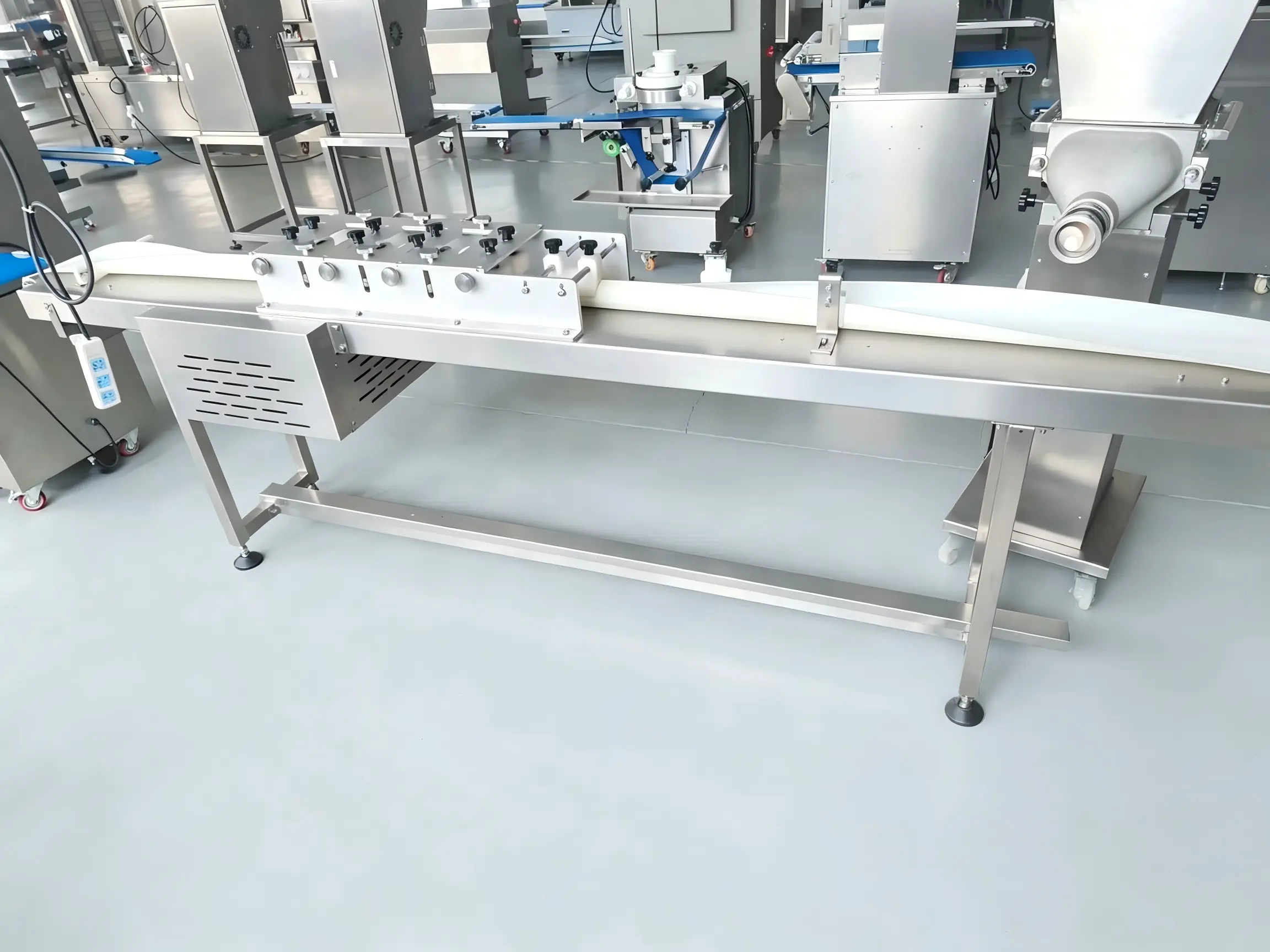

Sushi Roll Forming Machine
Automatic tight rolling station that wraps rice sheets, nori, and fillings into perfectly cylindrical rolls. Adjustable diameter 40–60mm with support for both normal and reverse rolling.

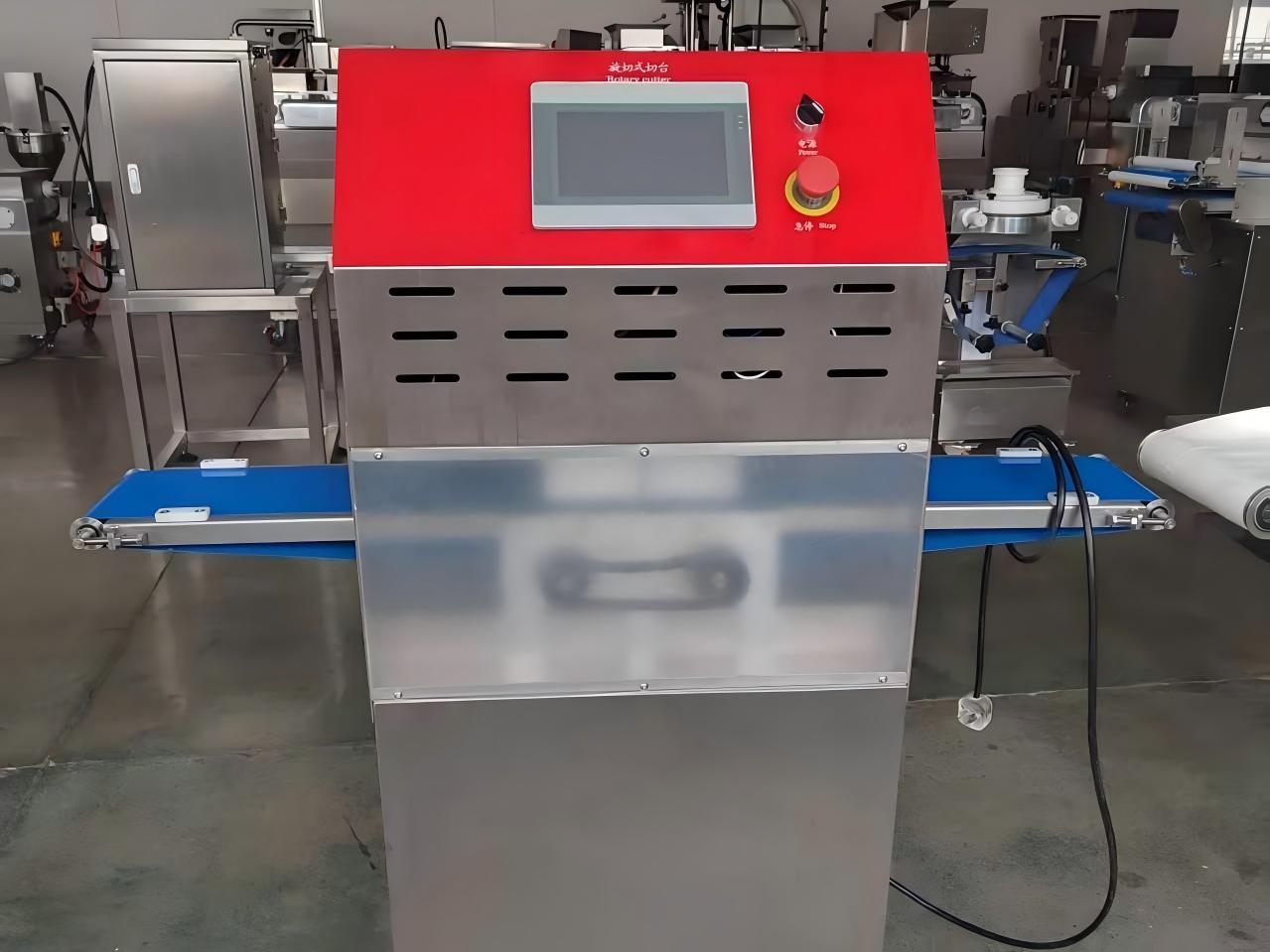

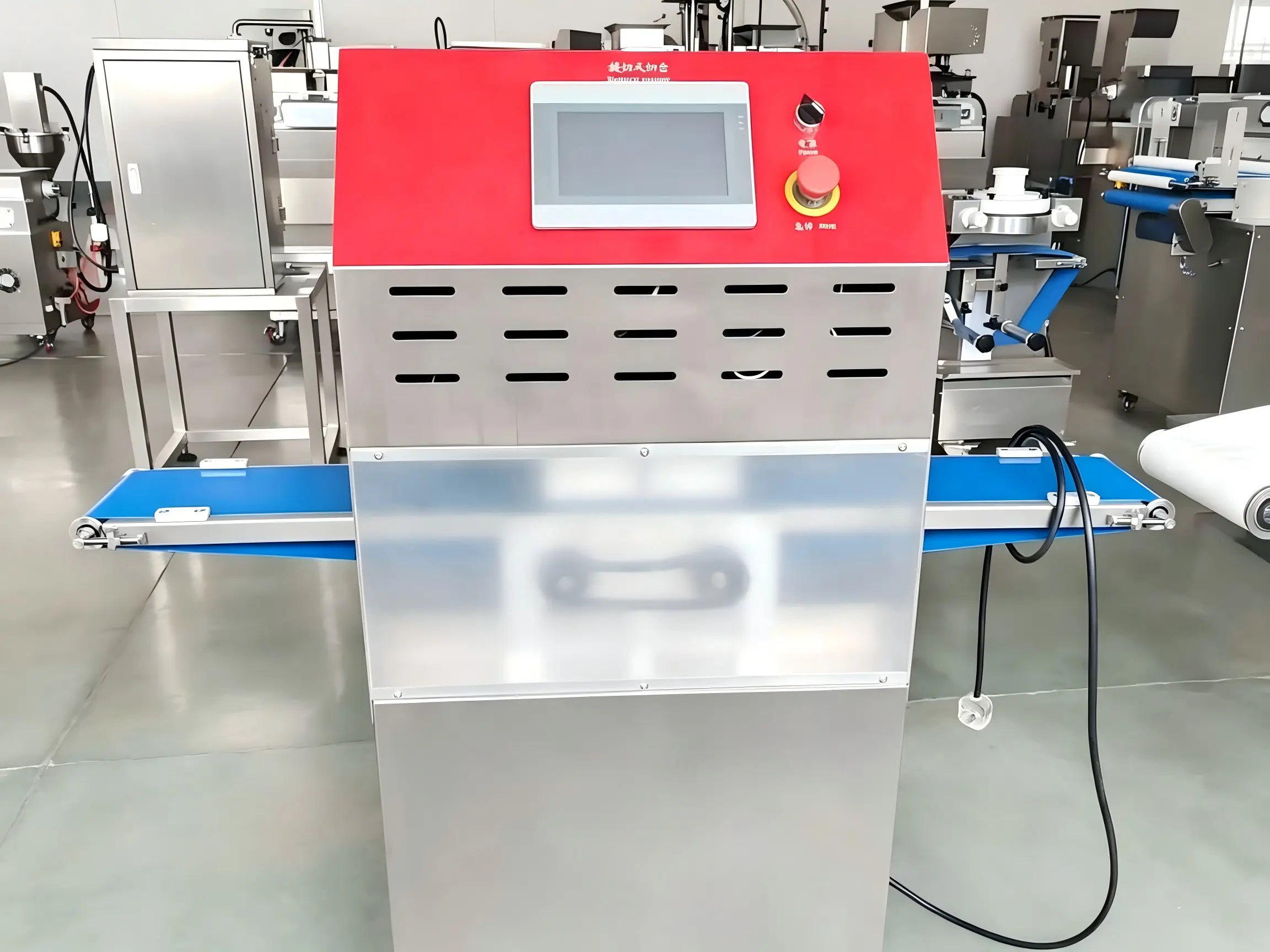

Rotary Cutting Station
High-speed rotary blade cutting module delivers clean, precise slices without crushing rice grains or sticking. Digitally adjustable slicing length, seamlessly connects to automatic packaging or tray-loading.

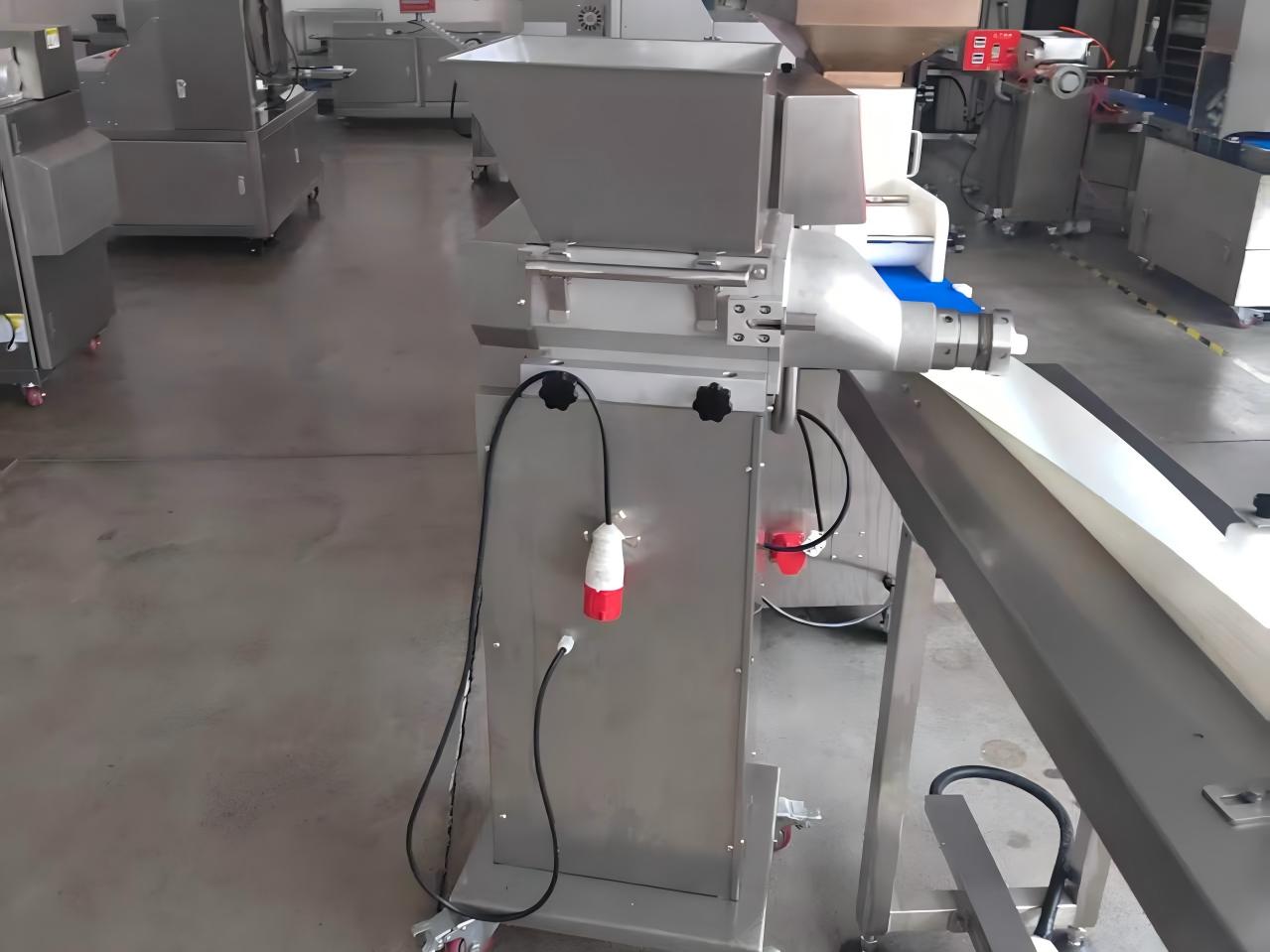

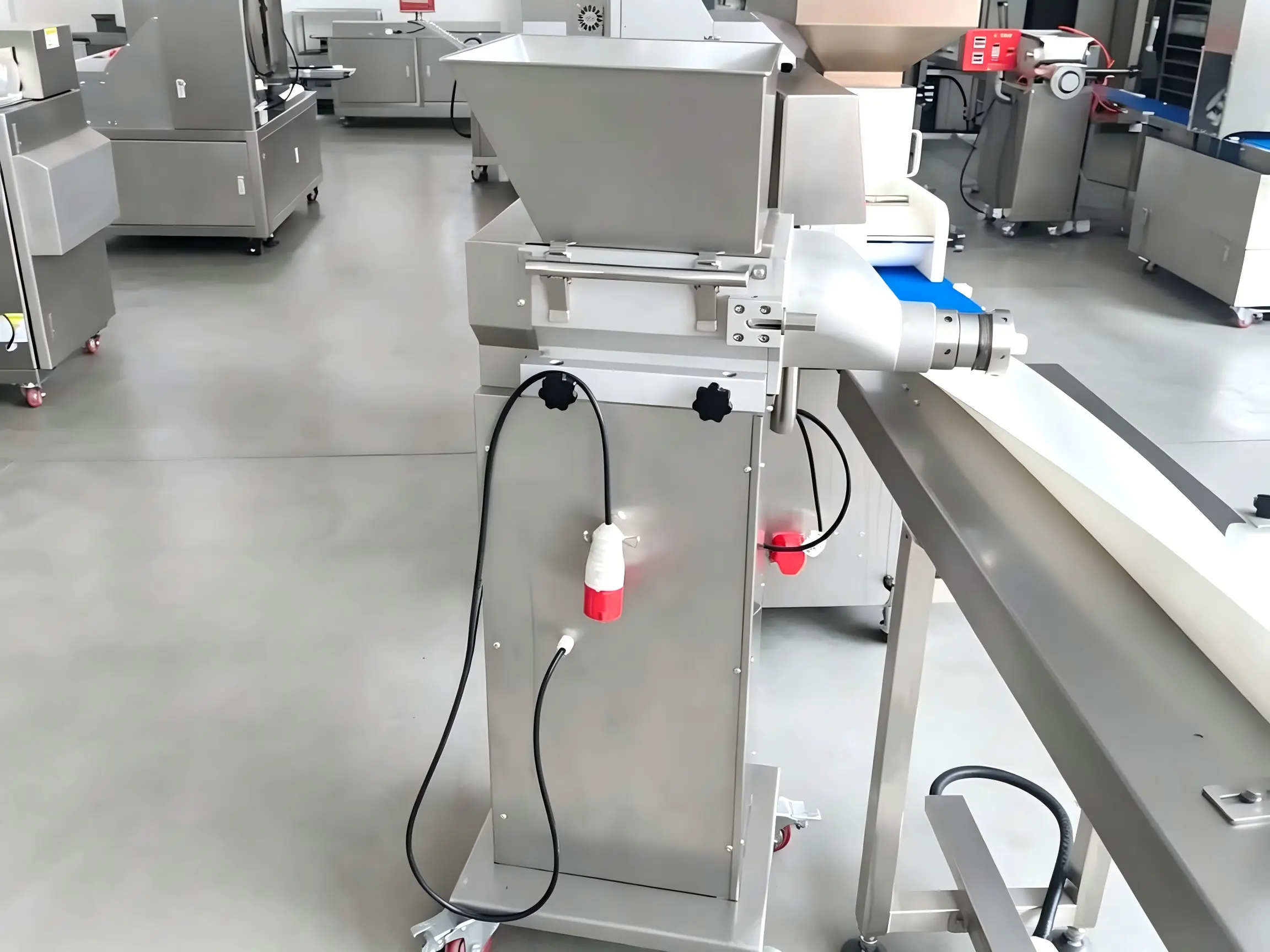

Horizontal Filling Feeder
Direct-driven horizontal filling system with anti-bridging design. Consistently distributes complex paste, meat floss, or vegetable fillings at stable volume — preserving ingredient texture and shape.
Detailed Equipment Parameters
Comprehensive specifications for each module. Custom configurations available — contact our engineers for tailored solutions.
| Parameter | Sushi Rice Molding Machine | Sushi Roll Forming Machine | Rotary Cutting Station | Horizontal Filling Feeder |
|---|---|---|---|---|
| Dimensions (L×W×H) | 1370 × 600 × 1455 mm | 2950 × 520 × 1045 mm | 1160 × 475 × 1310 mm | 765 × 457 × 1268 mm |
| Weight | 270 KG | 120 KG | 75 KG | 110 KG |
| Power | ~ 660 W | ~ 400 W | ~ 580 W | ~ 200 W |
| Capacity / Output | 7 – 10 m/min | 7 – 10 m/min | 70 – 100 pcs/min | Direct-driven stable output |
| Product Size | Width: 120–170mm (Adjustable) | Diameter: 40–60mm (Adjustable) | Slicing Length: Digitally Adjustable | Food-Grade Specialized PE Mold |
| Power Input | Single-phase AC 220V±10%, 50HZ | — | Single-phase AC 220V±10%, 50HZ | — |
| Structure Material | SUS304 Stainless Steel | SUS304 / Q235A Stainless Steel | SUS304 Stainless Steel | Stainless Steel 304 |
| Conveyor / Belt | Food-grade PU | Premium Food-grade PU | — | Anodized High-Strength Al-Alloy Base |
| Special Features | ★ Optional: Seaweed Rolling Device | Normal & Reverse Rolling | ★ Connects forming to packaging | Anti-Bridging Filling Design |
Manufacturing Excellence Since 2005

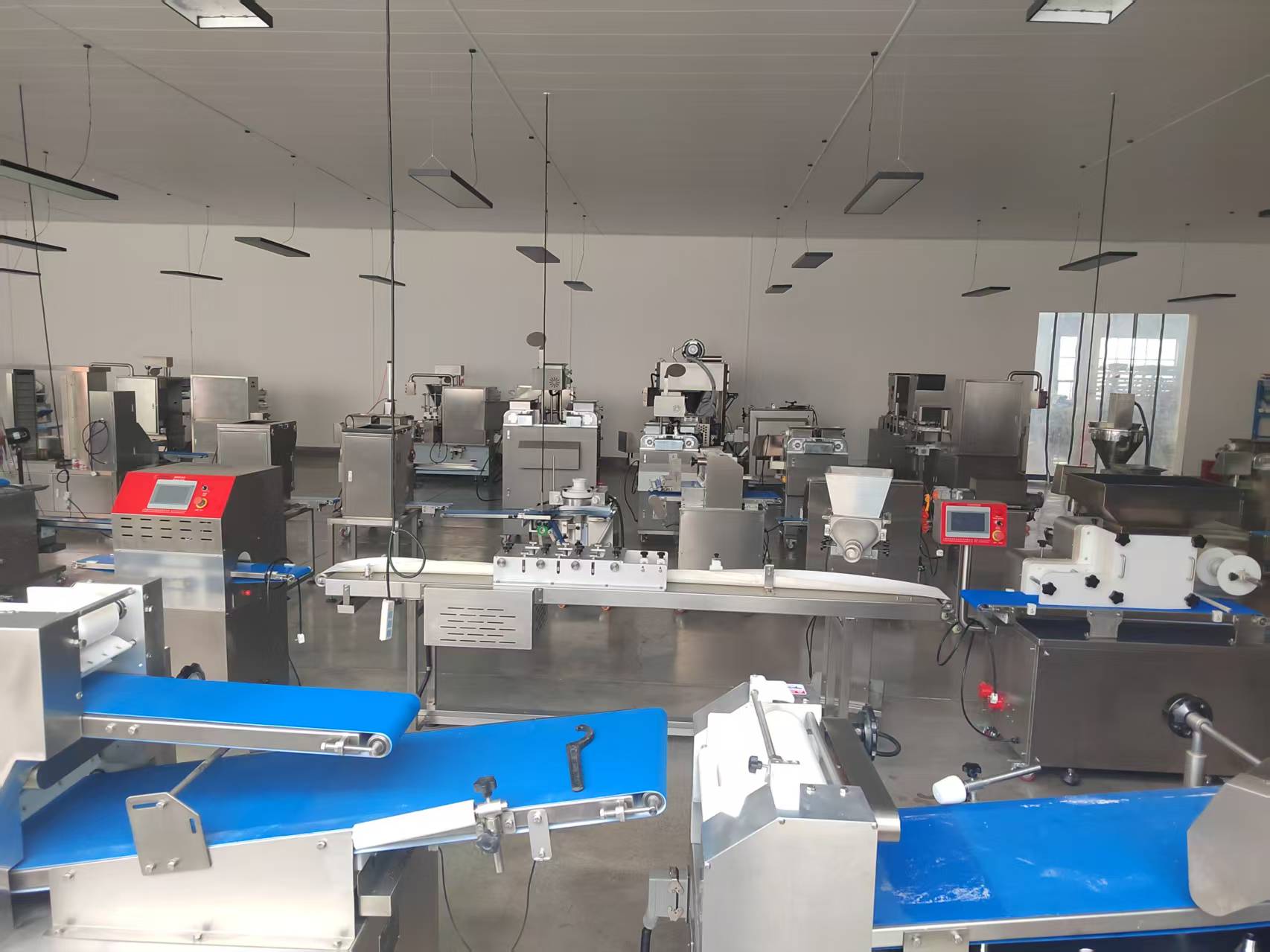

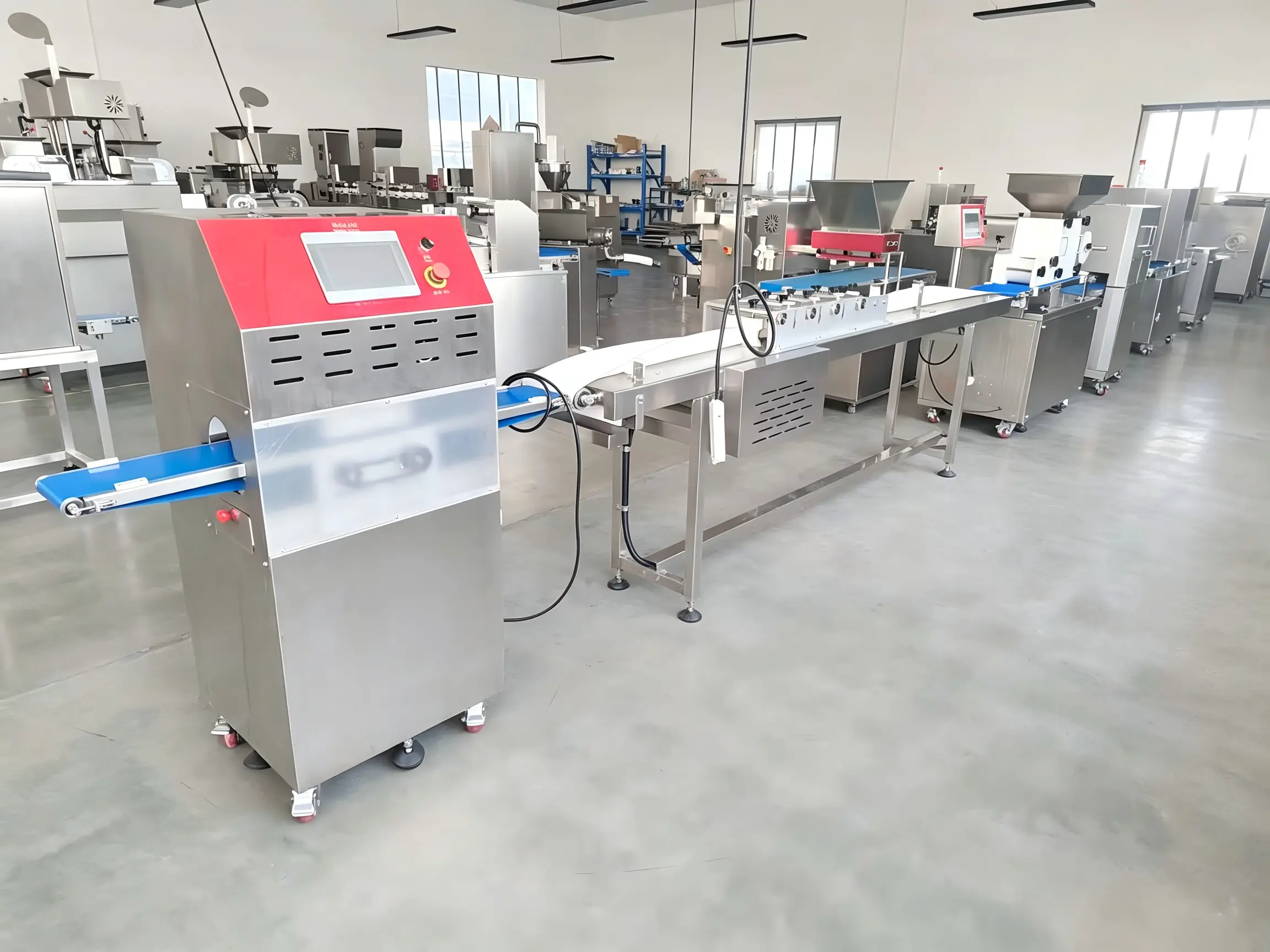

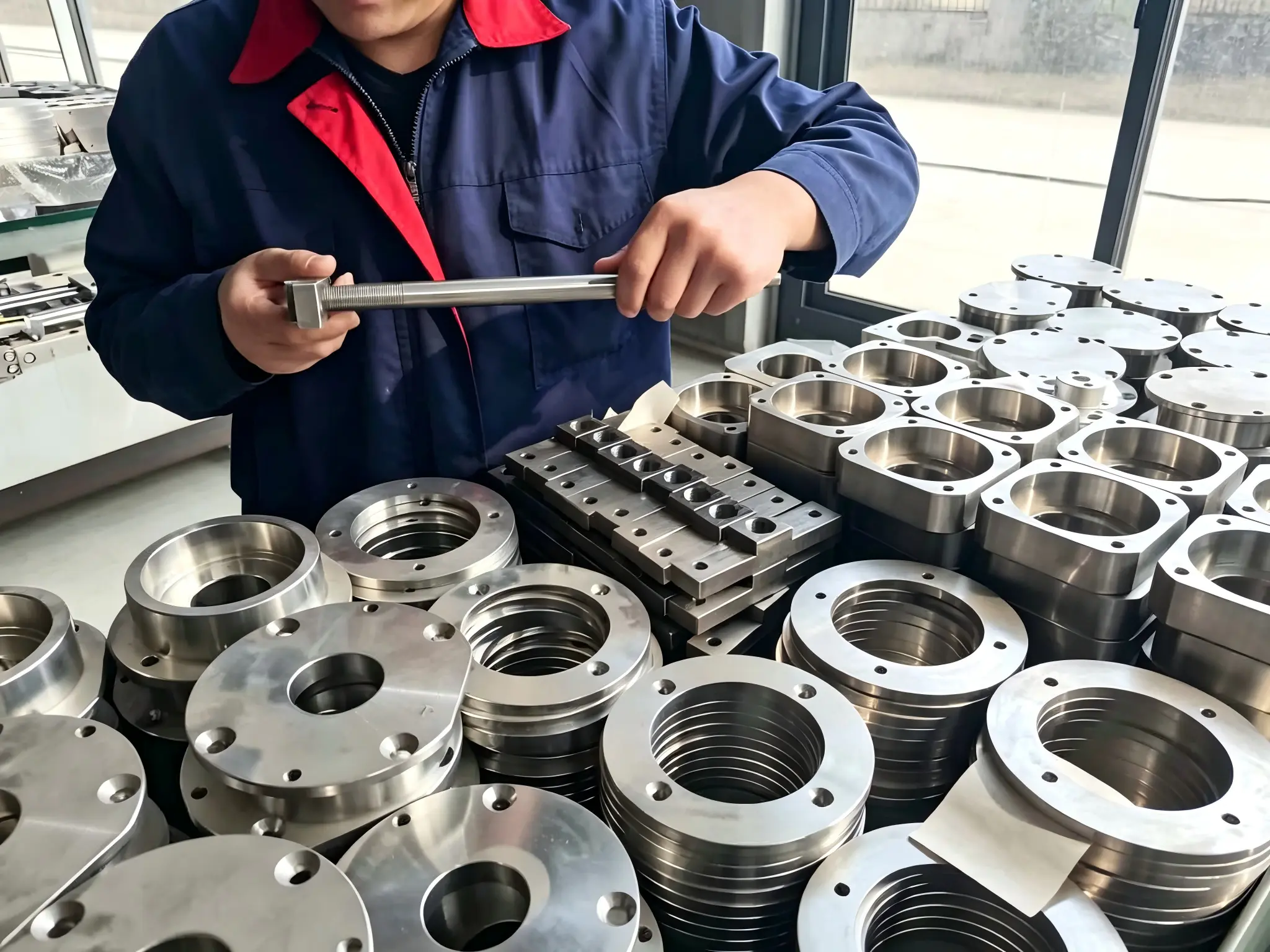

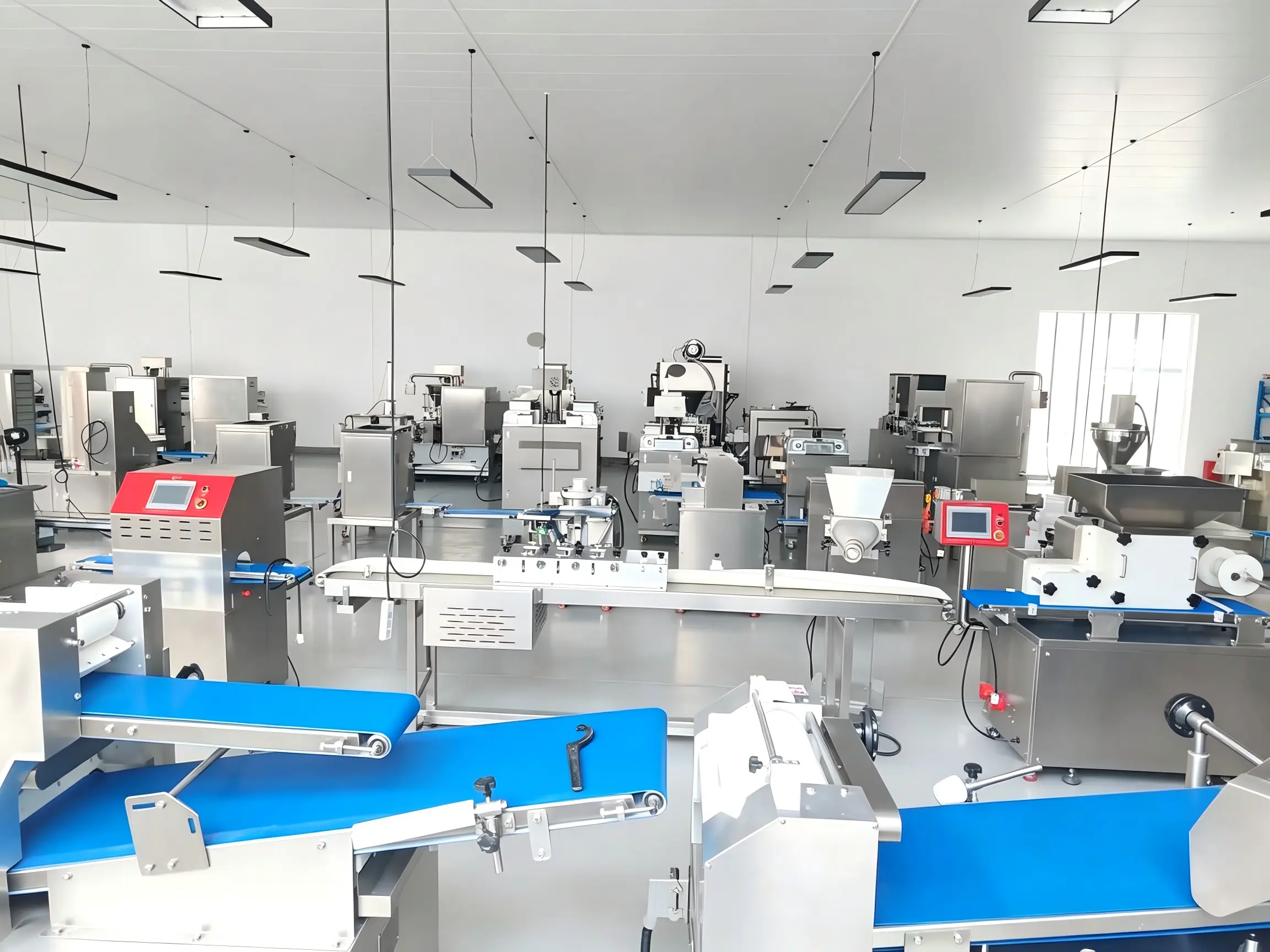

Our 20,000 m² modern production facility houses precision machining, stainless steel fabrication, assembly lines, and rigorous quality control — ensuring every machine meets international standards.
