An automated rinsing-filling-capping monoblock that fills purified, mineral, and flavored water into PET bottles at high speed with pinpoint accuracy. PLC-controlled, food-grade stainless steel, and available from 3,000 to 42,000 bottles per hour — for startups to large bottling plants.
The water bottle filling machine is automated equipment designed to fill purified or mineral water into PET, plastic, or glass bottles with high accuracy and speed. It is built for businesses producing mineral water, purified water, and flavored beverages.

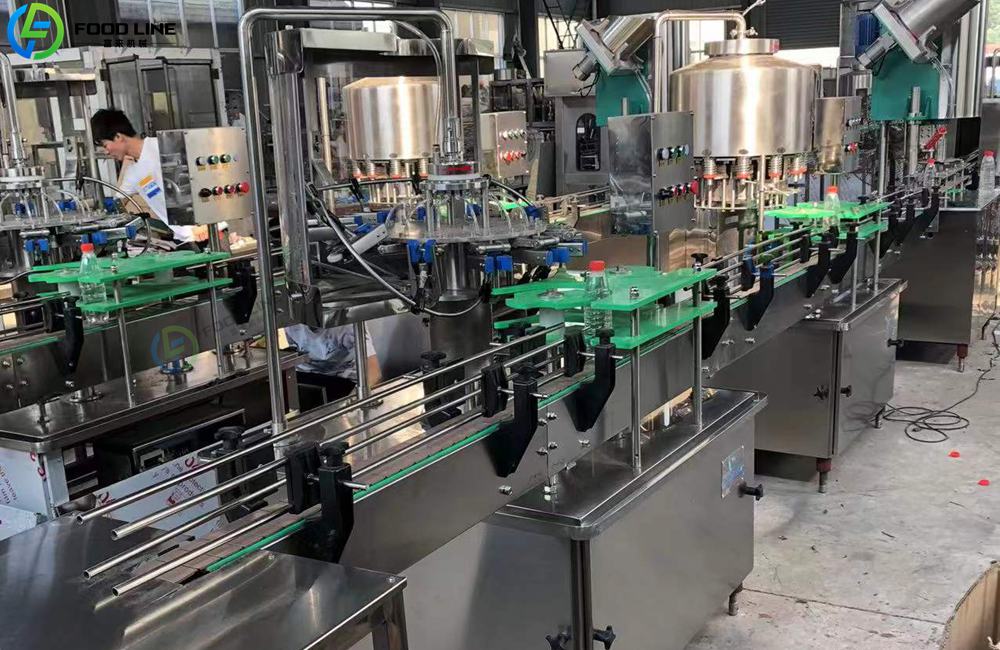

The core 3-in-1 monoblock combines bottle rinsing, water filling, and cap sealing in a single hygienic stainless-steel structure. PLC + touchscreen control makes operation intuitive, while contactless filling valves prevent contamination. Whether you need a compact 3,000 BPH starter line or a high-speed 42,000 BPH plant, we deliver a turnkey solution tailored to your production goals.
Speeds range from 3,000 to 42,000 bottles per hour depending on model. The 3-in-1 monoblock minimizes bottle transfers and maximizes uptime for continuous production.
Contact parts are made of 304/316L stainless steel — corrosion-resistant, easy to clean, and built for decades of continuous bottling operation.
The intuitive HMI displays real-time production data, fault diagnostics, and parameter settings. Operators can adjust speed, volume, and sequence with a few taps.
Contactless filling valves prevent contamination and drip. RO water rinsing at 0.2–0.25 MPa ensures every bottle is clean before filling.
Supports bottle volumes from 330ml to 5L, round or square PET bottles. Changeover parts are available for multiple SKUs on one line.
Optimized water recycling and low-power drive systems reduce both water and electricity consumption — lowering operating costs over the machine's lifetime.
RO purification and filtration units remove impurities, ensuring the final product meets bottled water quality standards.
PET preforms are heated and blown into bottles on-site — eliminating bottle storage costs and ensuring a steady supply.

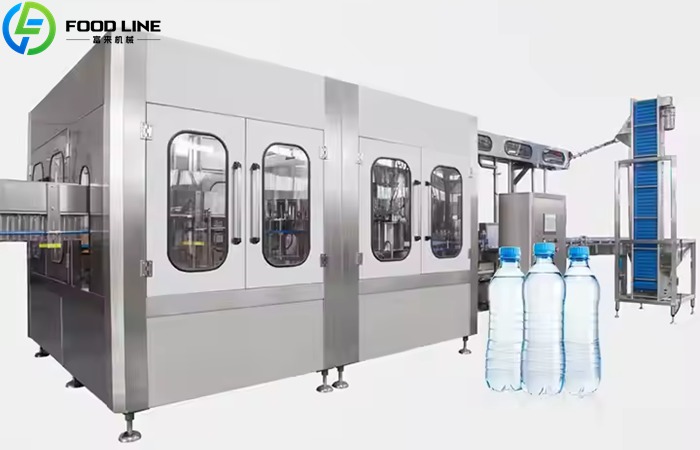

The core monoblock rinses bottles with RO water, fills them volumetrically, and screw-caps them — all in one synchronized unit.

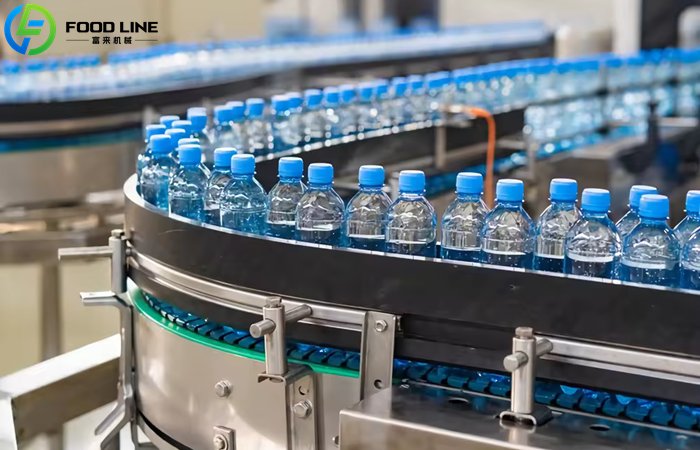

Bottles pass through labeling (sleeve or adhesive), date coding, and shrink wrapping — ready for palletizing and distribution.
| Model | Capacity (500ml) | Total Power | Weight |
|---|---|---|---|
| FL14-12-5 | 3,000–4,000 BPH | 4.5 kW | 3,500 kg |
| FL18-18-6 | 5,000–6,000 BPH | 4.5 kW | 4,000 kg |
| FL24-24-8 | 12,000 BPH | 5.3 kW | 5,600 kg |
| FL32-32-10 | 18,000–20,000 BPH | 7.2 kW | 14,000 kg |
| FL40-40-15 | 24,000–26,000 BPH | 10.5 kW | 16,000 kg |
| FL50-50-20 | 30,000–33,000 BPH | 13.7 kW | 19,000 kg |
| FL60-60-20 | 36,000–38,000 BPH | 14.5 kW | 23,000 kg |
| FL72-72-22 | 40,000–42,000 BPH | 16.3 kW | 26,000 kg |
Suitable bottles: PET round or square. Washing medium: RO water at 0.2–0.25 MPa. Bottle volumes: 330ml – 5L+.
Rinsing, filling, and capping in one PLC-controlled system. Best for medium to large water bottling plants.
Compact, budget-friendly unit with manual bottle loading/unloading. Ideal for small-scale startups and test markets.
Combines rinse, fill, and cap in a single hygienic structure. High speed and low contamination — the industry standard.
Bottles move in a straight line, offering flexibility for different bottle shapes and sizes. Suitable for juice, water, and other liquids.
The line supports PET round or square bottles ranging from 330ml to 5L and beyond. Changeover parts are available to switch between bottle sizes and neck diameters.
The flagship FL72-72-22 reaches 40,000–42,000 bottles per hour (based on 500ml bottles). Smaller models start at 3,000 BPH for starter operations.

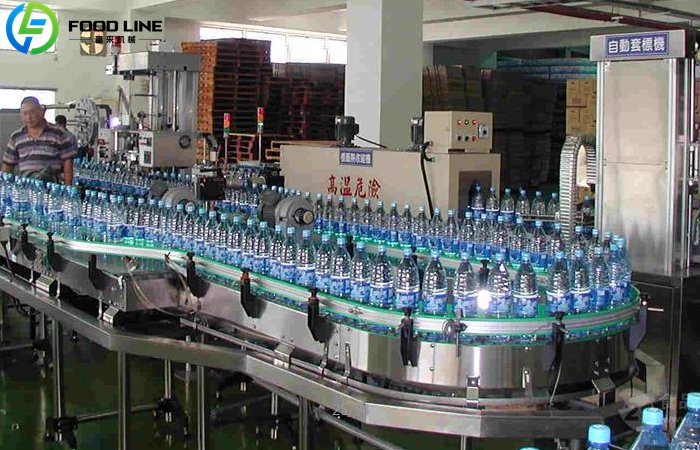

We provide a full turnkey solution: water treatment, bottle blowing, the 3-in-1 rinser/filler/capper, labeling, date coding, and shrink packing — plus installation and training.
We accept T/T and L/C. Machines are typically shipped by sea in 30–45 days after deposit. We have exported to Nigeria, Kenya, Egypt, India, the Philippines, and South Africa.
Yes. Each project includes installation guidance, spare parts, and ongoing technical support. Our engineers can travel to your site for commissioning and operator training.
We have supplied water bottle filling lines to clients in Nigeria, Kenya, Egypt, India, the Philippines, and South Africa — helping dozens of factories establish profitable bottled water businesses.
Each project includes installation guidance, spare parts, and technical support to ensure long-term reliability. Whether you are starting a new bottled water brand or expanding an existing plant, we design a turnkey project layout covering equipment selection, installation, and operator training.
