✓ Flavor & Tenderness Boost ⚡ Continuous & Intermittent Tumbling ⚙️ Food-Grade Stainless Steel
The Vacuum Meat Tumbler improves flavor absorption, tenderness, and product yield for poultry, beef, pork, and seafood by tumbling under low-pressure vacuum environment.

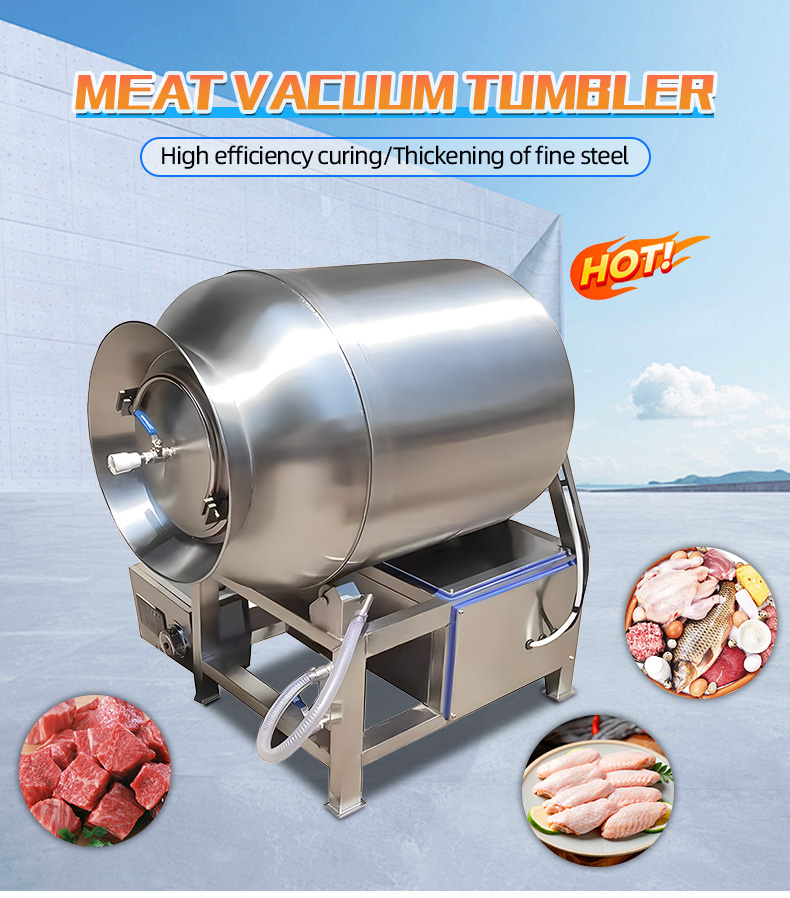

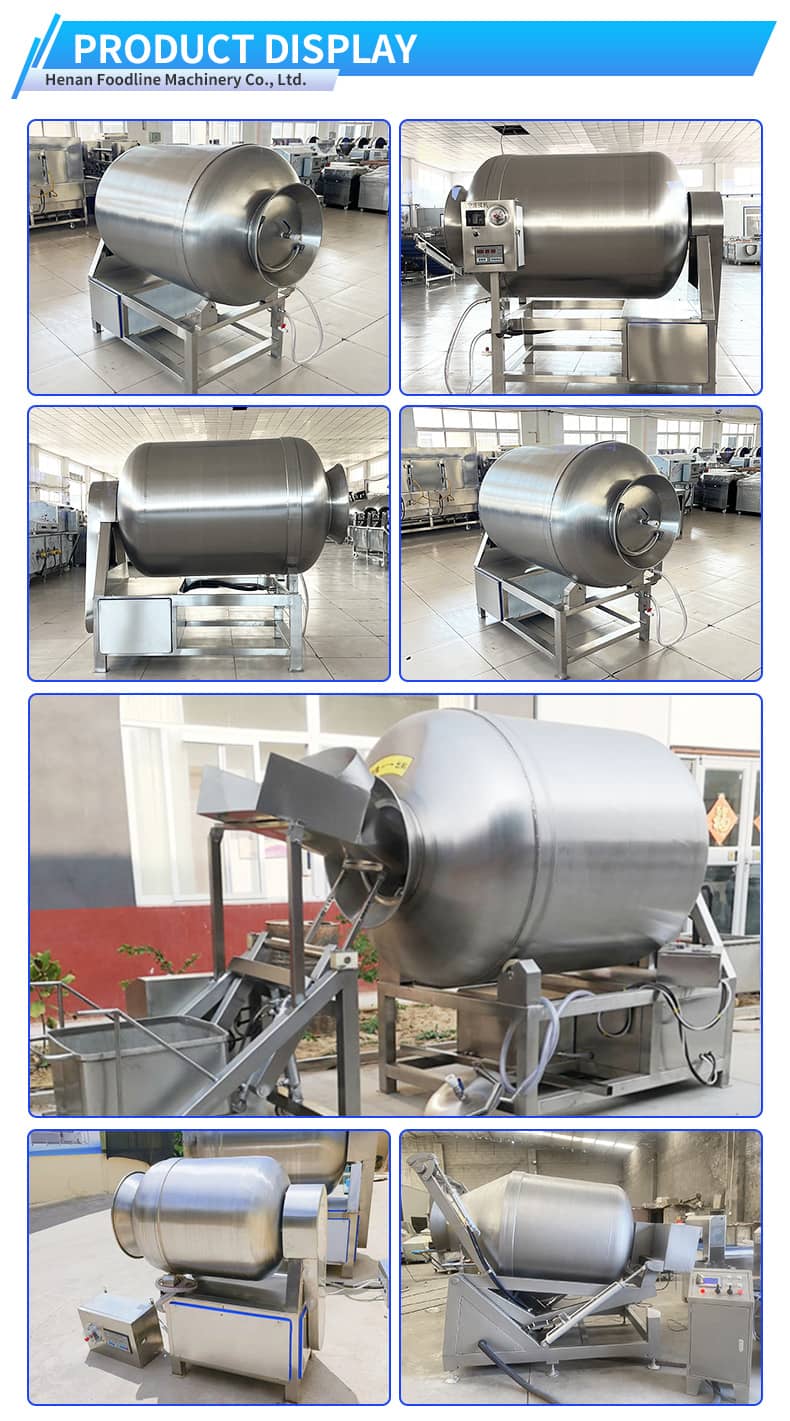

Vacuum Meat Tumbler Unit
Vacuum Suction Loading Drum
Key Features & Performance Advantages
🥩 Enhanced Flavor & Tenderness: Vacuum pressure expands muscle fibers, enabling seasonings and marinades to penetrate deeply while increasing overall product yield.
🔄 Versatile Operational Modes: Supports continuous tumbling, intermittent tumbling, and reverse-rotation auto discharge for maximum process flexibility.
📥 Automatic Vacuum Loading: Equipped with a convenient vacuum suction inlet for effortless material loading and reduced manual labor.
🛡️ Industrial Sanitary Construction: Crafted completely from food-grade stainless steel with seamless surfaces for effortless cleaning and long-term durability.
Technical Parameters of Meat Tumbler Machine
Select the ideal capacity for your processing requirements, from standard commercial batches to industrial-scale production:
| Model | FL-500 | FL-800 | FL-1200 | FL-1500 |
|---|---|---|---|---|
| Capacity (kg) | 200 | 300 | 500 | 700 |
| Volume (L) | 500 | 800 | 1200 | 4500 |
| Power (kW) | 3.0 | 3.0 | 8.5 | 8.5 |
| Drum Speed (rpm) | 8.5 | 9.0 | 7 / 11 | 7 / 11 |
| Vacuum Level (kPa) | -80 kPa | |||
| External Dim. (mm) | 1540x1020x1550 | 1740x1060x1670 | 2210x1280x1900 | 2490x1280x1900 |
| Installation Dim. (mm) | 2600x1500x2000 | 2800x1500x2000 | 3000x2000x2500 | 3200x2000x2500 |
| Weight (kg) | ≈500 | ≈600 | ≈800 | ≈1000 |
How the Vacuum Meat Tumbling Process Works
1. Loading
Meat and marinade are loaded into the drum via suction inlet.
2. Vacuum Sealing
Air is extracted to establish a controlled low-pressure environment.
3. Tumbling Cycle
The drum rotates continuously or intermittently to tumble meat smoothly.
4. Absorption Phase
Muscle fibers open up under vacuum for maximum marinade penetration.
5. Rest & Discharge
Automatic reverse rotation discharges ready-to-process seasoned meat.
